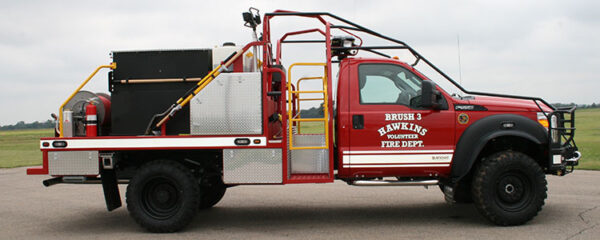

Meet the Chaparral Brush Truck

The Chaparral is the wildland, first response, quick attack truck. It is designed to be the first truck out of the station giving other engines the crucial time to setup.

The Chaparral series of fine fuel grass rigs consists of five models varying with the chassis and the size of the tank.

SKU: BCBT01 Category: Fire Trucks

Description

Manufacturer: Blanchat

Meet the Chaparral Brush Truck

The Chaparral is the wildland, first response, quick attack truck. It is designed to be the first truck out of the station giving other engines the crucial time to setup.

The Chaparral series of fine fuel grass rigs consists of five models varying with the chassis and the size of the tank.

The B-3 Chaparral Brush Truck – Type 6 Wildland Engine

The B-3 is built on a chassis with a 60-64 inch cab to axle measurement, dual rear wheels and 13,500 GVW with a 300 gallon poly tank. The B-3 is typically built on a Ford F-350 chassis*.

The B-4 Chaparral Brush Truck – Type 5 Wildland Engine

The B-4 is built on a chassis with a 60-64 inch cab to axle measurement, dual rear wheels and 15,000 GVW or higher. The B-4 has a 400 gallon poly tank and is usually built on a Ford F-450 or F-550 chassis*. The B-4 has the same footprint as the B-3 with a larger tank.

The B-5 Chaparral Brush Truck – Type 5 Wildland Engine

The B-5 is built on a chassis with a 84 inch cab to axle measurement, dual rear wheels and 18,000 GVW or higher. The B-5 has a 500 gallon poly tank and is usually built on a Ford F-550 chassis*. The B-5 is our most popular Chaparral.

The B-6 Chaparral Brush Truck – Type 5 Wildland Engine

The B-6 is built on a chassis with a 84 inch cab to axle measurement, dual rear wheels and 18,000 GVW or higher. The B-6 has a 600 gallon poly tank and is usually built on a Ford F-550 chassis*. The B-6 has the same footprint as the B-5 with a larger tank.

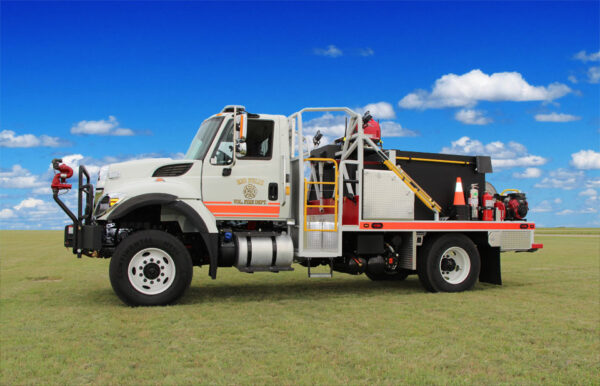

The B-8 Chaparral Brush Truck – Type 4 Wildland Engine

The B-8 is built on a mid-sized chassis. The B-8 has a standard 800 gallon poly tank, upgradeable to 1000, 1250 and 1500 gallons depending on the chassis size and GVW.

*Other chassis manufacturers are available such as Dodge and International.

Additional information

Models	The B-3 Chaparral Brush Truck – Type 6 Wildland Engine, The B-4 Chaparral Brush Truck – Type 5 Wildland Engine, The B-5 Chaparral Brush Truck – Type 5 Wildland Engine, The B-6 Chaparral Brush Truck – Type 5 Wildland Engine, The B-8 Chaparral Brush Truck – Type 4 Wildland Engine
Vendor	Blanchat

Chaparral Brush Truck Standard Features

Steel Body Construction

The custom built body is fabricated from heavy channel iron and premium sheet steel with welded seams. All structural components of the bed are steel to comply with SAE J1194 for the Fire Attack Operational Areas in the BATROPS crosswalk.
BATROPS Crosswalk

Directly aft of the chassis cab, the BATROPS (Blanchat Apparatus Transverse Roll-Over Protection System) is a transverse crosswalk which follows SAE International Surface Vehicle Standard #J1194 for roll-over protective structures.
Blanchat Restraint System

The Blanchat Restraint System is a 4-point full body harness which is attached within the BATROPS Fire Attack Operational Areas. It allows the firefighter to operate within the Fire Attack Operational Area from a seated or standing position.
Recessed Poly Tank

The tank is created by hand of polypropylene material that is several times stronger than standard propylene and features a lifetime warranty. The tank is recessed into the frame of the body for a low center of gravity.
Water Level Indicator

A tankvision water level indicator is installed on the left side of the pump panel.
Hale HPX200 Pump with Briggs 23 HP

The standard pump is a Hale HPX200 with Briggs & Stratton Vanguard 23 HP V-twin overhead valve engine. The pump performance is 200 GPM at 100 PSI and 300 GPM at 25 PSI. The pump has a hand priming system standard.
Pre-connected Crosslay

The 1-1/2 inch pre-connected crosslay hose bed is located behind the BATROPS crosswalk underneath the pump panel area. The hose bed is accessible from driver and passenger sides as well as from the BATROPS area.
Pump Suction & Drafting

The plumbing tank to pump is 2-1/2 inch with one quarter turn valve. The plumbing from pump to draft is 2-1/2 inch with one quarter turn valve, 30 deg turn down, suction adapter and chrome plug with chain. With both valves open, the suction assembly will function as a quick fill.
Custom Pump Panel

The pump control panel is mounted in the BATROPS crosswalk for 360 degree visibility and to keep the operator free of surrounding threats. It has the following functions: pump start/stop, choke, pressure and throttle control, water level indicator and valve controls for all discharges. If a foam system or CAFS is installed, these controls and components are located in the pump panel.
Aluminum Trim Package

Aluminum is used when strength is not required to save weight or for aesthetic reasons. Aluminum tread plate “kick panels” are used throughout the BATROPS walkway area to minimize paint scratches.

Chaparral Brush Truck Options

Blanchat Restraint Body Harness

This option includes one additional body harness for the Blanchat Restraint System.
Wheel Chock Set

A set of two wheel chocks are mounted in the rear wheel wells.
5 lb Dry Chemical Fire Extinguisher

A 5 lb dry chemical fire extinguisher with 40-B:C is mounted to the bed for easy access.
First Aid Kit

A first aid kit is mounted in an easily accessible location.
35 HP Pump

The pump can be upgraded to a Hale HPX275 with Briggs & Stratton 35 HP V-twin overhead valve engine. The pump performance is 190 GPM at 145 PSI from draft to supply two 95 GPM nozzles with 200 feet of 1-3/4 inch hose or 250 GPM at 125 PSI from draft to supply two 125 GPM nozzles with the same size hose.
600 Gallon Tank

The recessed poly tank is upgraded from 500 to 600 gallons.
FoamPro 1601

The FoamPro 1601 is an electronic, fully automatic, variable speed, direct injection and discharge side foam proportioning system for Class A foam. The system is accurate to within 3% of calibrated settings over the advertised operation range when installed.
Rowe CAFS

The Rowe Equalizer system has a compact design which allows for easy installation on almost any application. From wildland to structure fires, the equalizer system has many benefits including: simplicity, reliability, effectiveness, flexibility and a lifetime warranty. One or two 1.5″ crosslay discharges can be installed.
Tankvision with Mini Slave

The main indicator is installed in the pump panel with a mini slave in the cab.
4 Light Water Level Indicator

Four LED tank status lights (green, blue, amber and red) provide bright, easy to identify indication of water status. The option also includes a mini slave.
