GateWay M Series

Call for Price

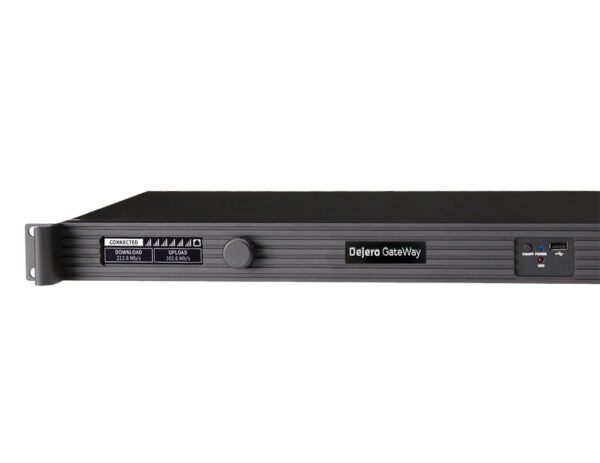

The router is part of the Dejero GateWay remote connectivity solution that provides fast, reliable, and secure access to the public Internet and private networks while in the field.

SKU: DGMS01 Category:

Description

Manufacturer: Dejero

Fast, reliable, and secure remote connectivity

The router is part of the Dejero GateWay remote connectivity solution that provides fast, reliable, and secure access to the public Internet and private networks while in the field.

GateWay blends multiple network connections to provide carrier diversity and high throughput. The router is available in a 1U rack-mount form-factor with integrated modems that connect to external antennas for optimal performance. The router also supports VPN tunneling for secure access to private networks.

The GateWay solution allows crews working on location to access their newsroom or media asset management systems, quickly send and receive large files, access cloud services, communicate with their colleagues via VoIP, and enables any other application requiring internet access—simplifying remote workflows and increasing productivity.

Product Specifications

NETWORK CONNECTIONS
CELLULAR Up to 6 x 3G/4G/LTE
ETHERNET Up to 6 x 1 Gb/s ports for LAN, WAN connections including satellite (BGAN, Ku-band, Ka-band), fixed line (cable, DSL), microwave, and Wi-Fi
Wi-Fi Dual-band wireless hotspot (802.11 a/b/g/n/ac)
USER INTERFACE
INDICATORS Front LEDs for power and disk activity Graphical display for modem connection/activity, and Ethernet connection
CONTROL Front panel dial and power switch
Setup and monitoring via Dejero Control
POWER
SUPPLY 100-240 VAC, 50-60 Hz, 1.0A max.
CONSUMPTION Max 100 W
PHYSICAL
DIMENSIONS 1U rack-mount
42.7 x 24.9 x 4.4 cm (16.8 x 9.8 x 1.7 inches)
WEIGHT 4.2 kg (9.2 lbs)
OPERATING TEMPERATURE -10° C to 50° C (14° F to 122°F)
CONNECTORS Up to 6 x RJ45 Ethernet, up to 12 cellular antennas, 1 x GPS antenna, 2 x Wi-Fi antennas, AC power



Key Features

MAM ACCESS

Download b-roll or upload complete packages to MAM systems

EXTENSION OF THE NEWSROOM

Remotely access newsroom systems as if you’re at the station

SEND AND RECEIVE LARGE FILES

Use FTP services to transfer files to and from the station

CLOUD WORKFLOWS

Cloud-based tasks like proxy editing can be done remotely

REAL-TIME PUBLISHING

Update your station’s web content with new information as it happens

RESEARCH ONLINE

Use the web to research stories

VoIP COMMUNICATION

Use your office extension number wherever you are

TRANSPORT VIDEO FEEDS

Connectivity for cameras with built-in or third-party encoders
