DynaLoc™ Type 2 Outdoor Magazine

Call for Price

U.S. Chemical Storage engineers durable Type 2 portable outdoor magazine for your high explosives. Each explosive storage magazine features ¼-inch steel plate construction lined with 3 inches of non-sparking hardwood and a double locking door system.

Category:

Description

Manufacturer: U.S Chemical Storage

U.S. Chemical Storage engineers durable Type 2 portable outdoor magazine for your high explosives. Each explosive storage magazine features ¼-inch steel plate construction lined with 3 inches of non-sparking hardwood and a double locking door system.

Type 2 Outdoor Magazine Storage Building Features & Benefits

  • Bullet-resistant
  • Fire-resistant
  • Weather-resistant
  • Theft-resistant
  • Airflow vents with steel hoods provide adequate ventilation
  • Open channel construction
  • Plate steel construction
  • Secure double locking door system with ¼-inch steel hood features hinges and hasps welded to door – cannot be removed when the door is closed and locked
  • Static grounding system prevents direct contact with the ground, meeting NFPA 70
  • Interior and exterior surfaces protected with high-performance two-part epoxy primer and polyurethane topcoat for resistance to chemicals, exterior abrasion, corrosion and UV
  • 30 standard models
  • Many models include forklift pockets for easy relocation

Explosive Storage Magazine Compliance

All magazines meet and exceed:

  • ATF 27 CFR, Part 555.208
  • DoD 5100

Common Applications

  • Military/law enforcement explosive and ammunition storage
  • Municipal explosive and ammunition storage
  • Contractor explosive and ammunition storage

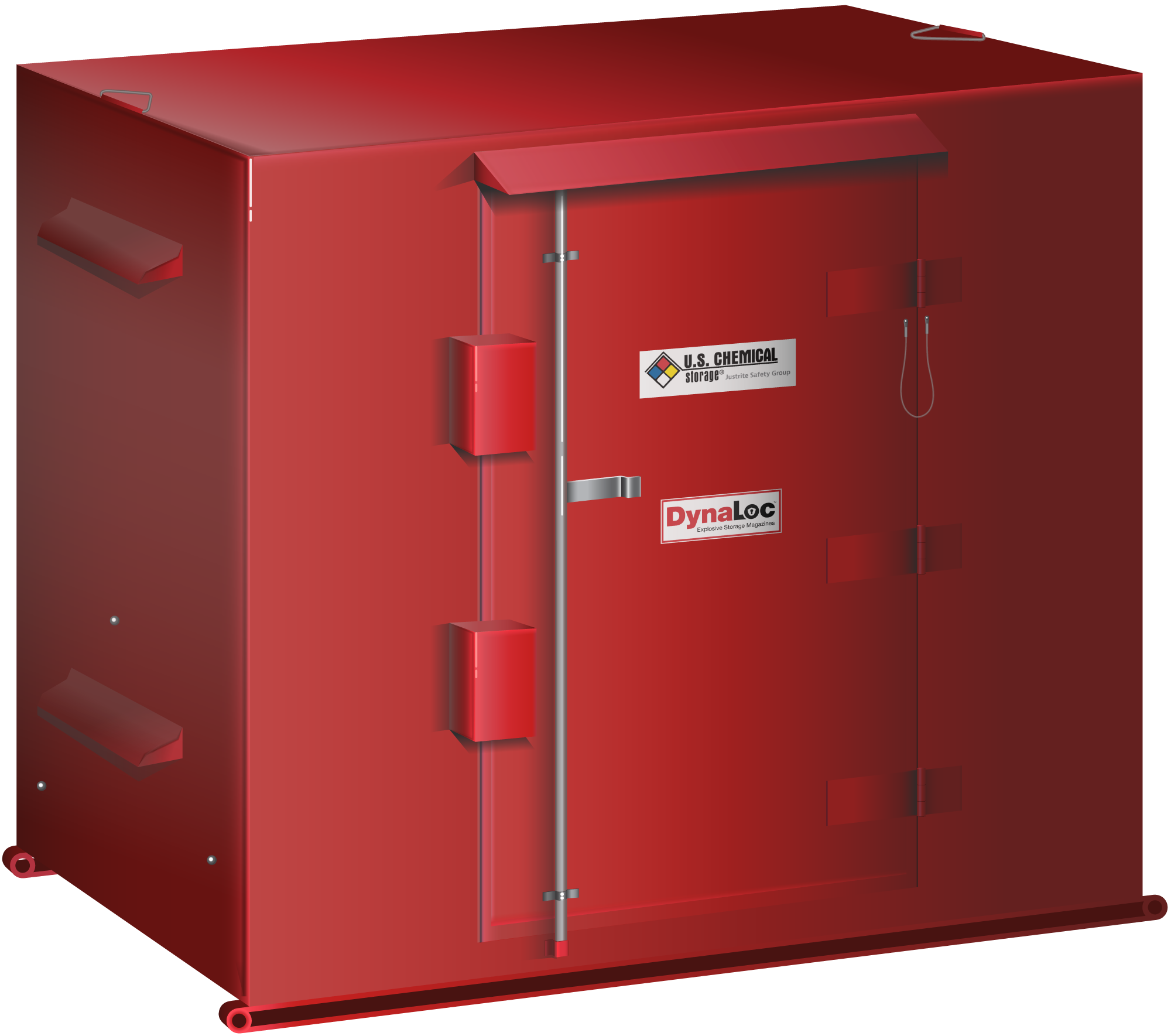

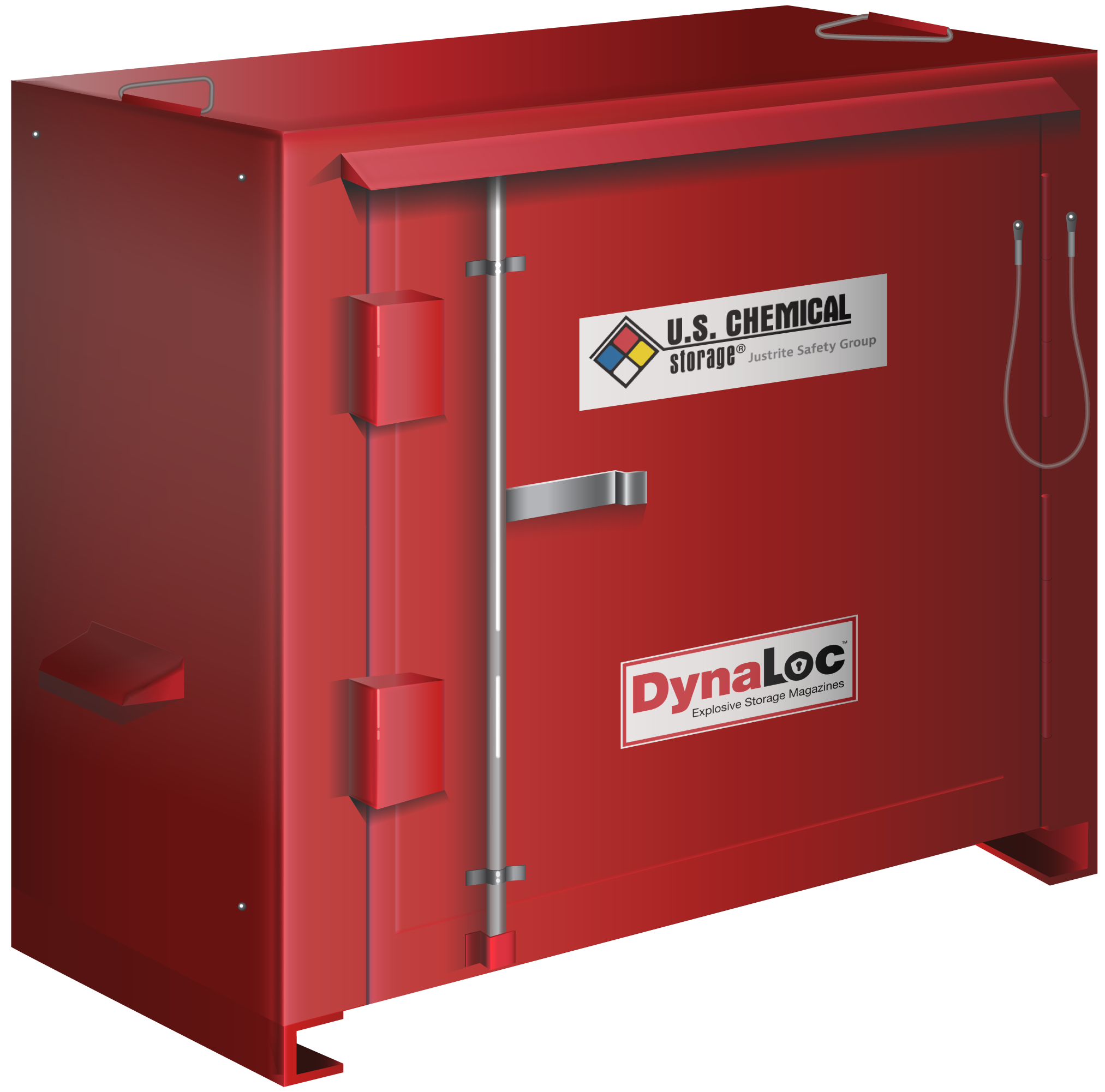

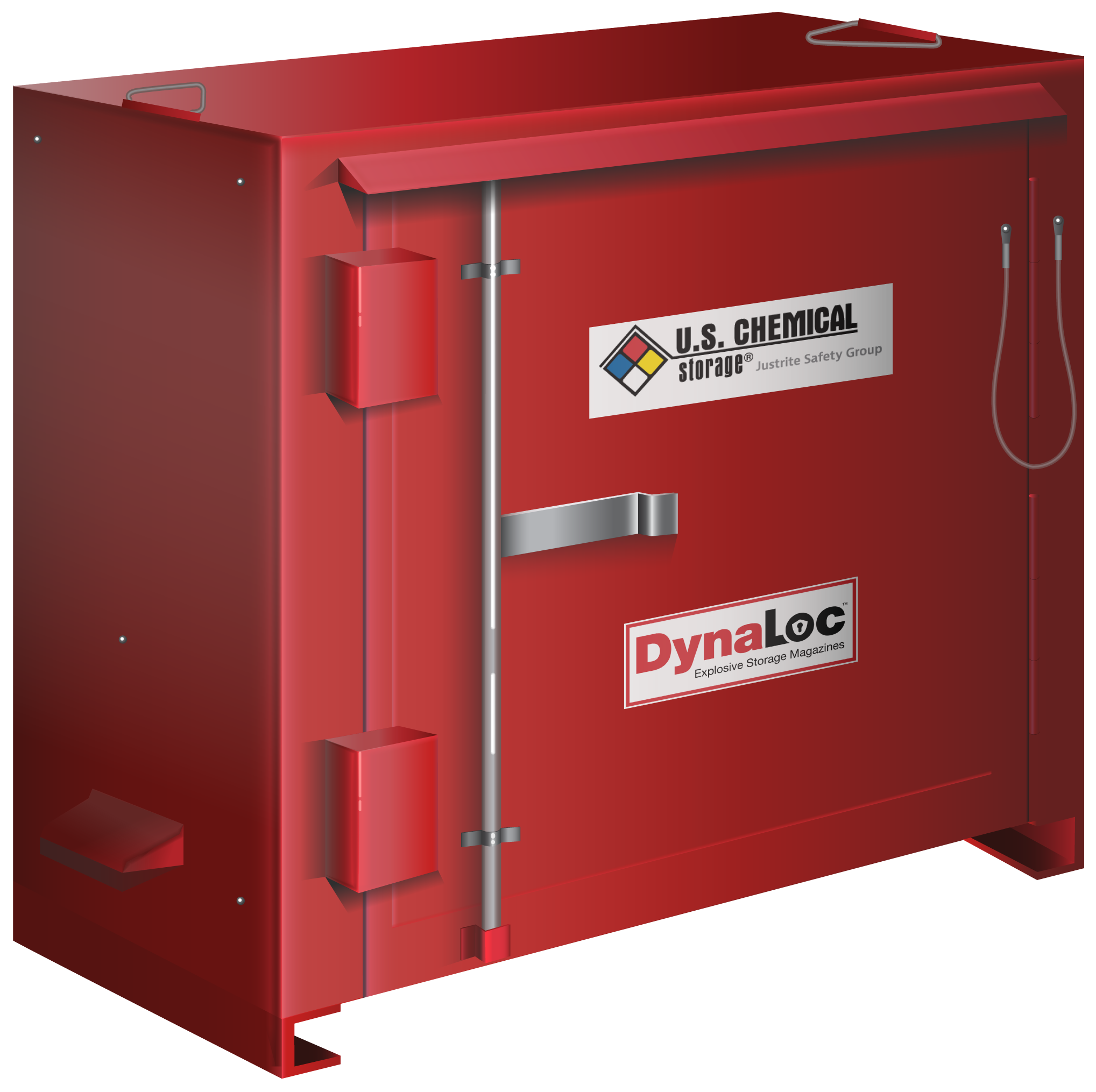

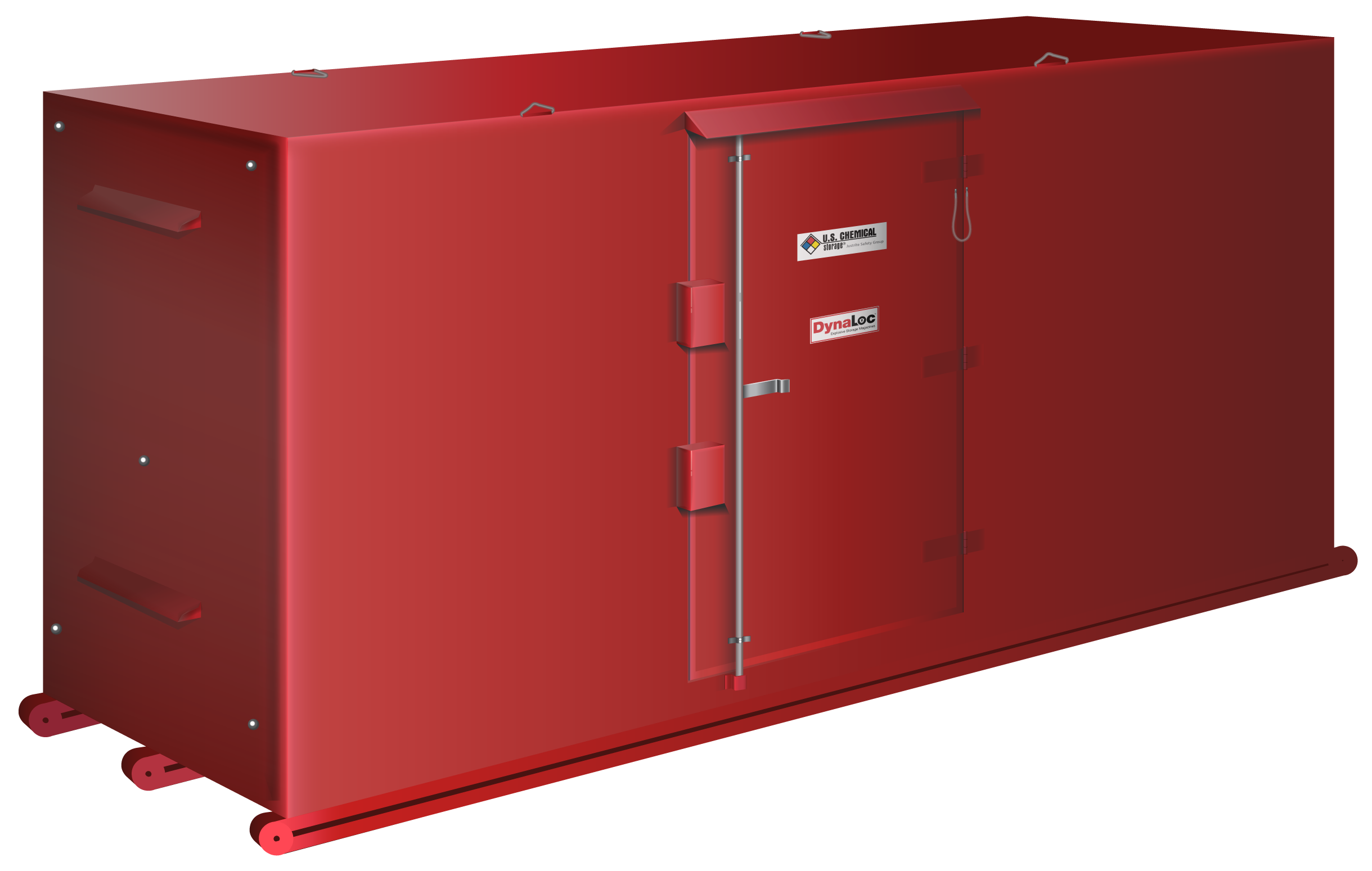

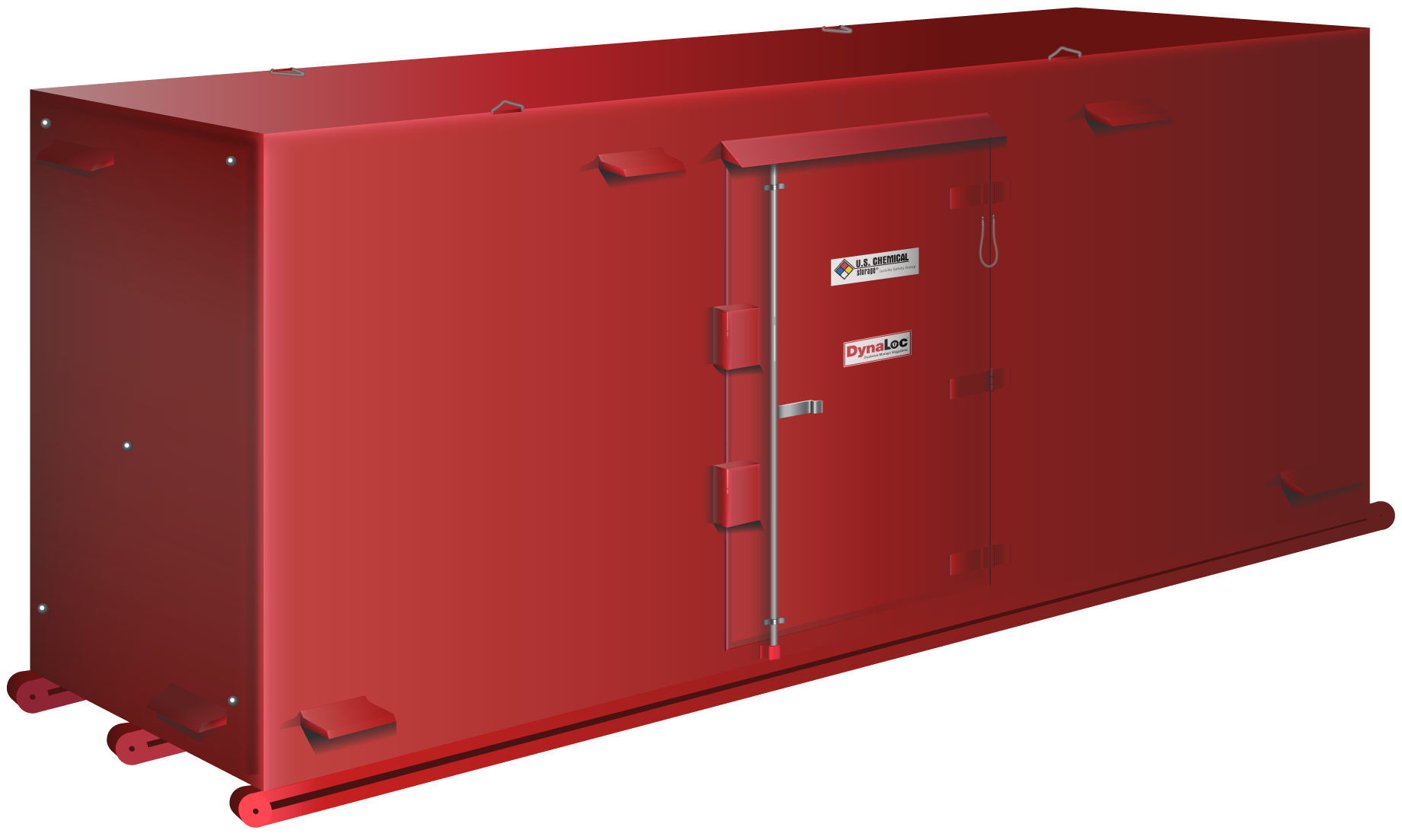

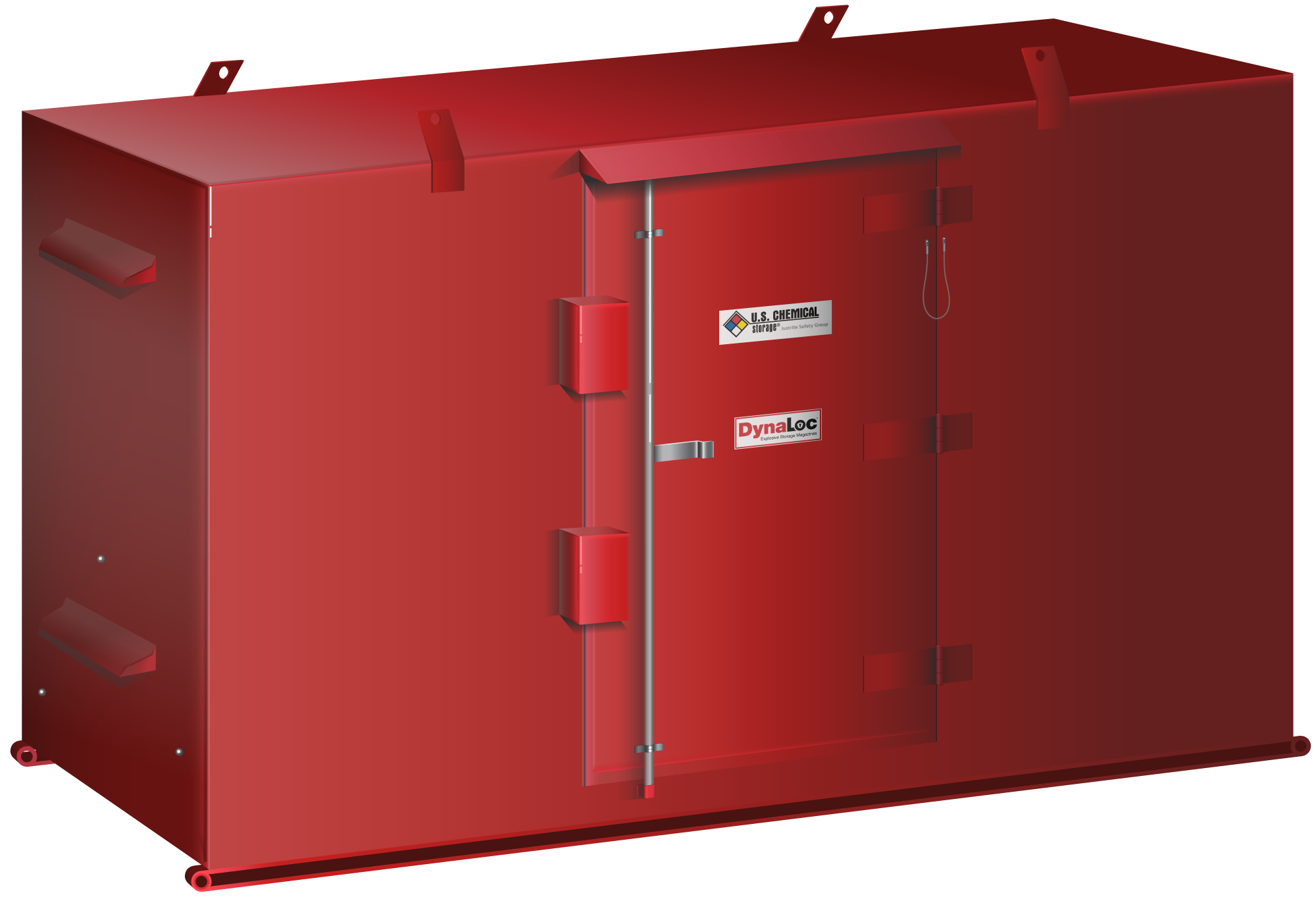

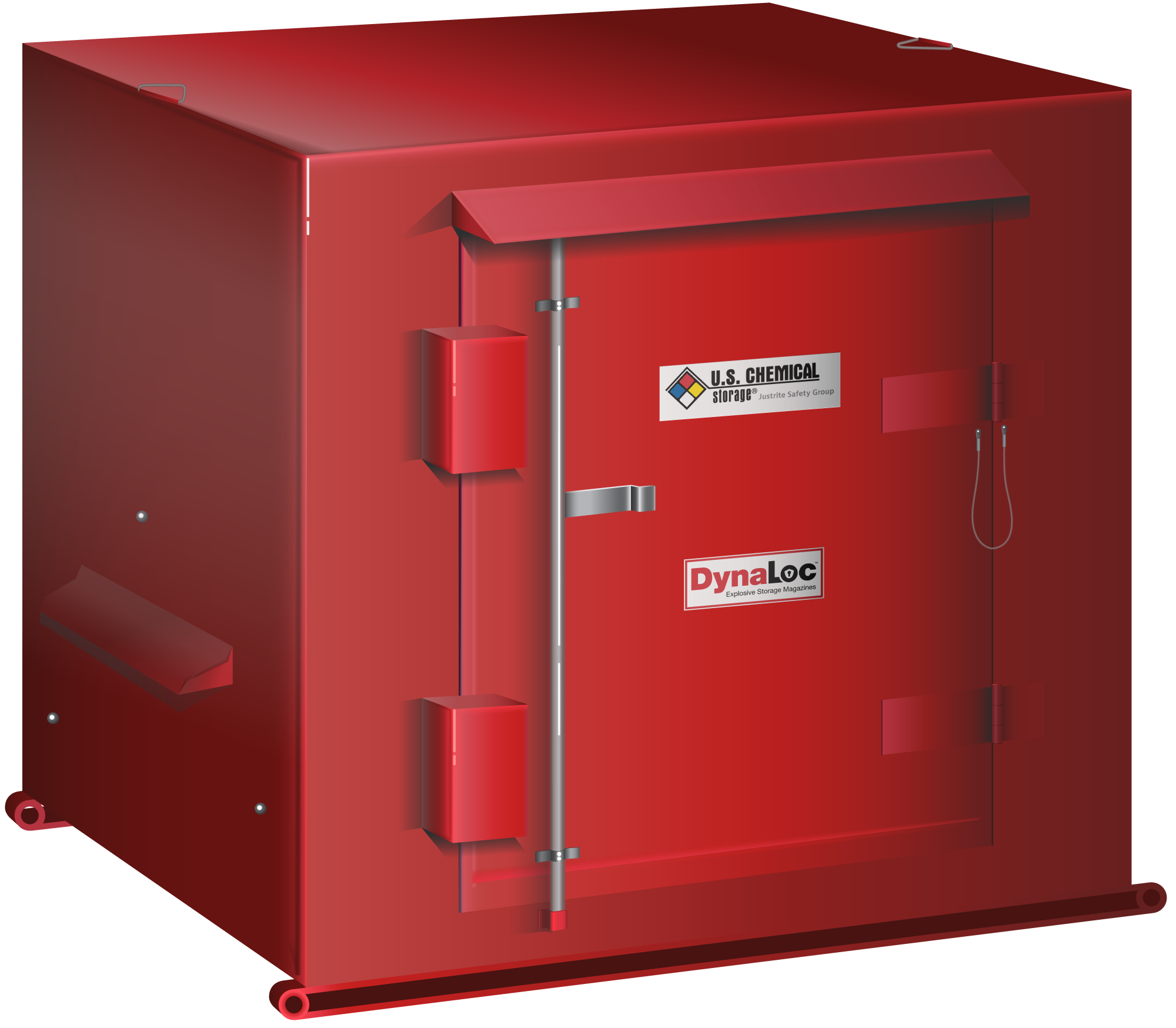

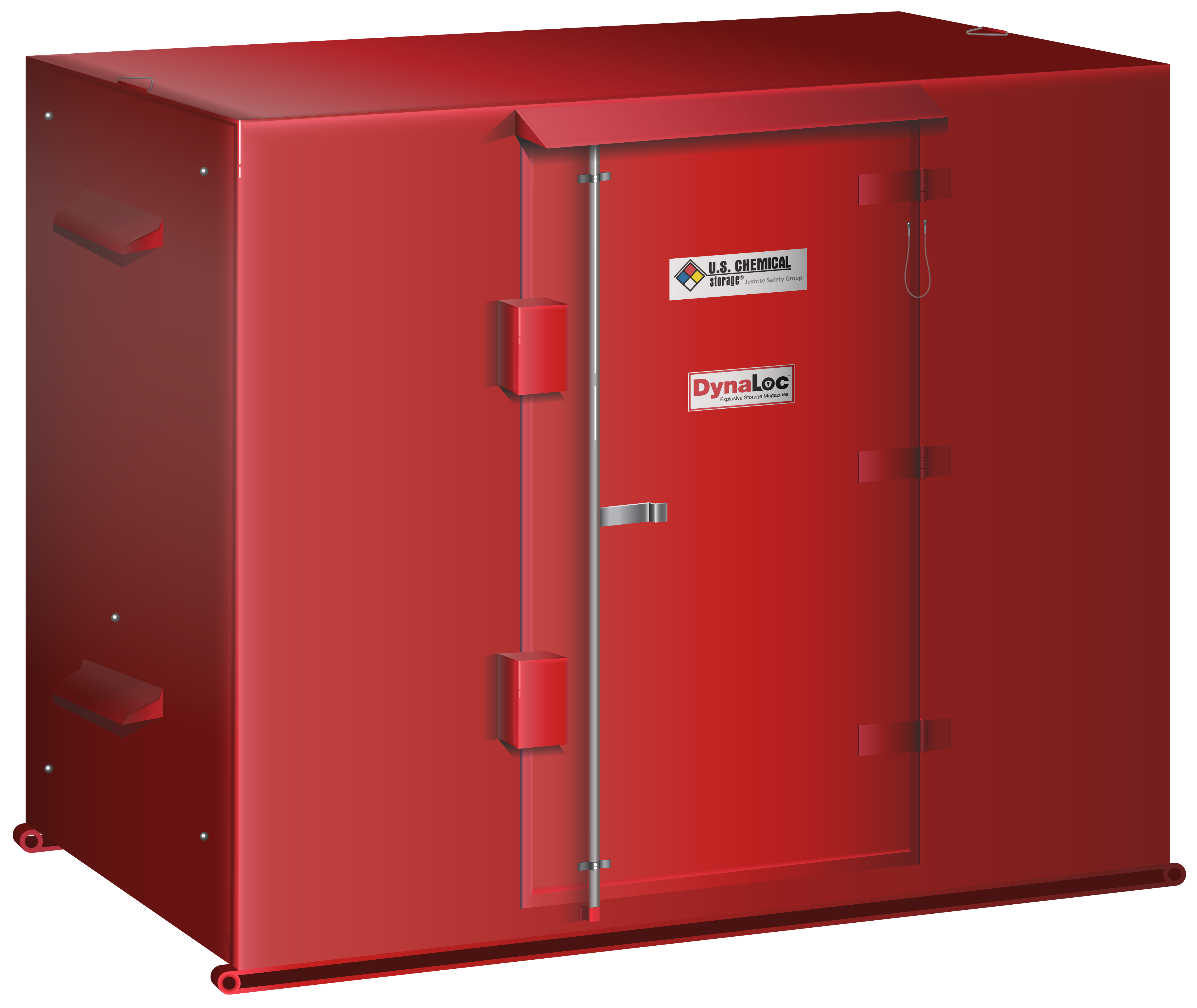

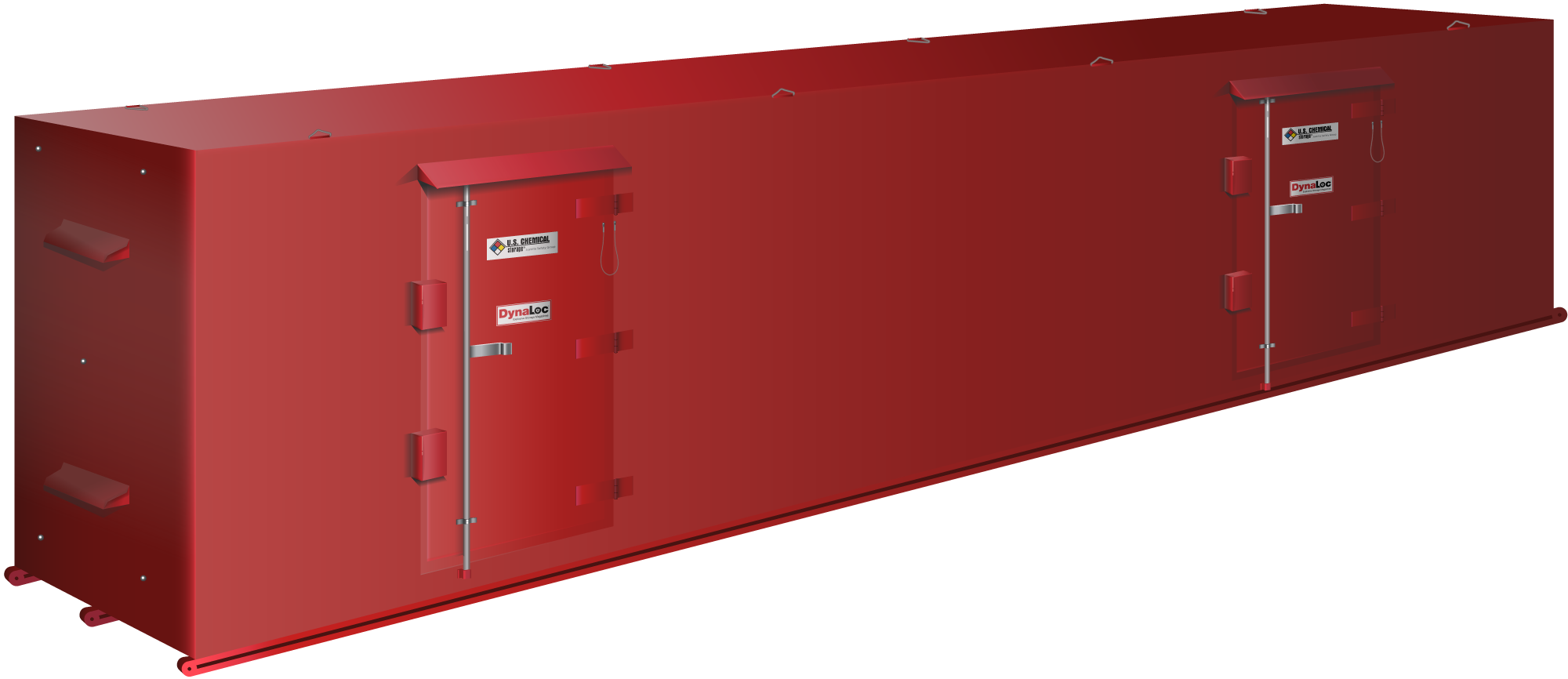

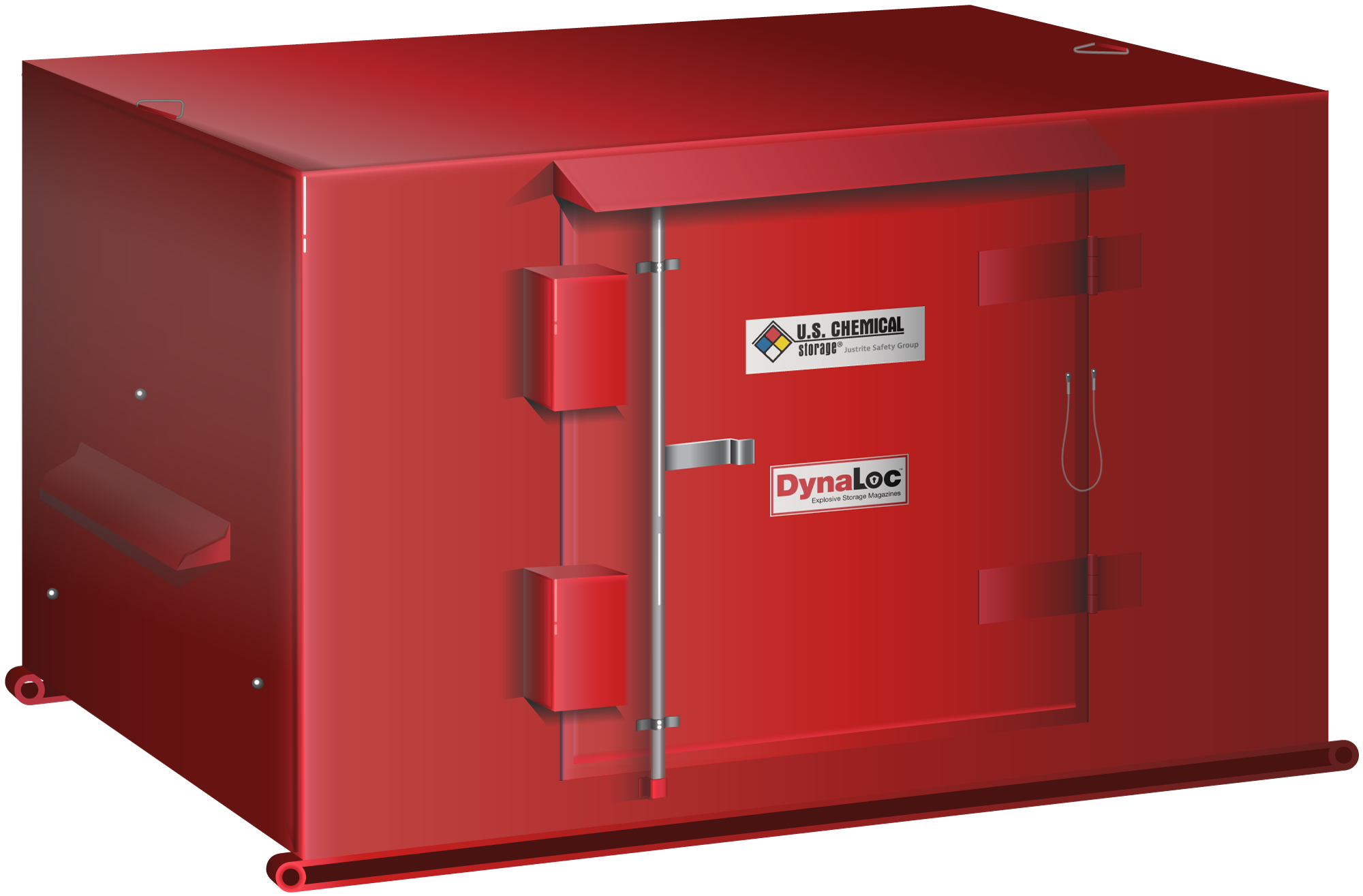

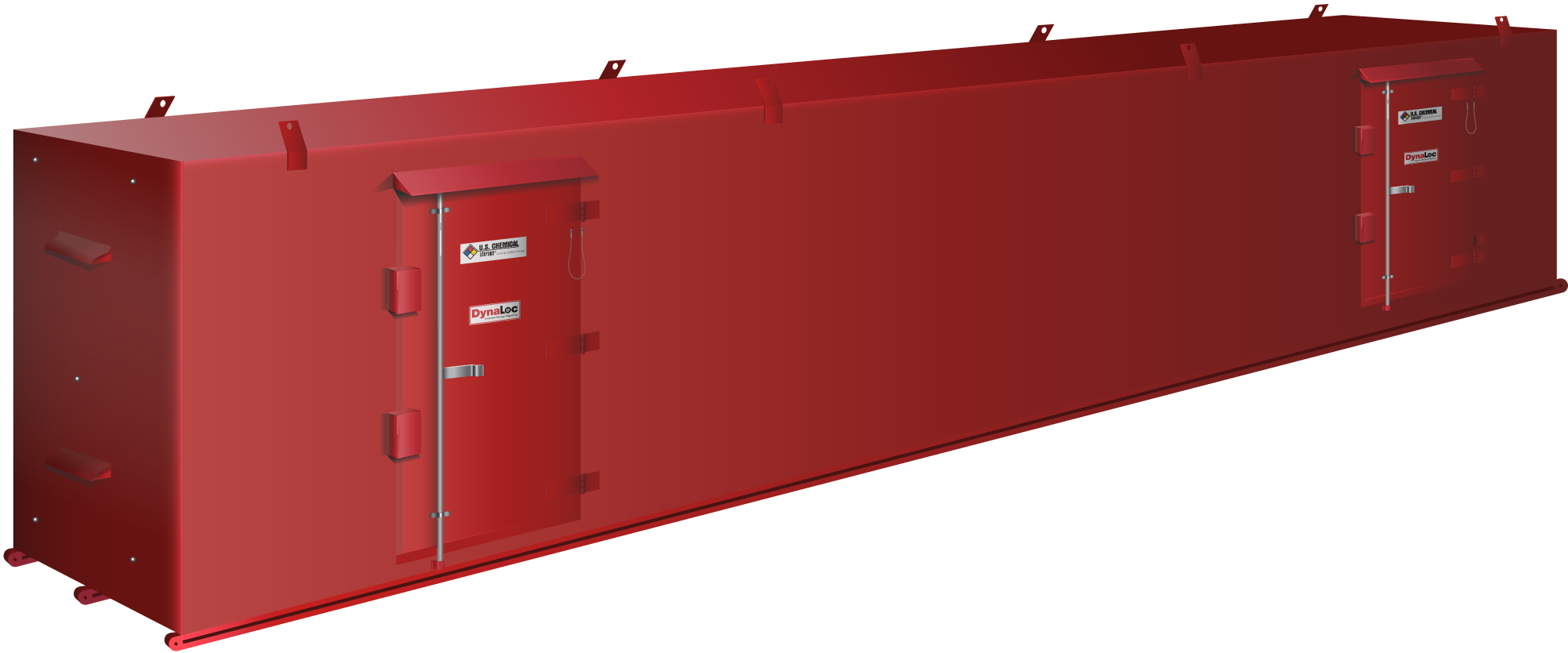

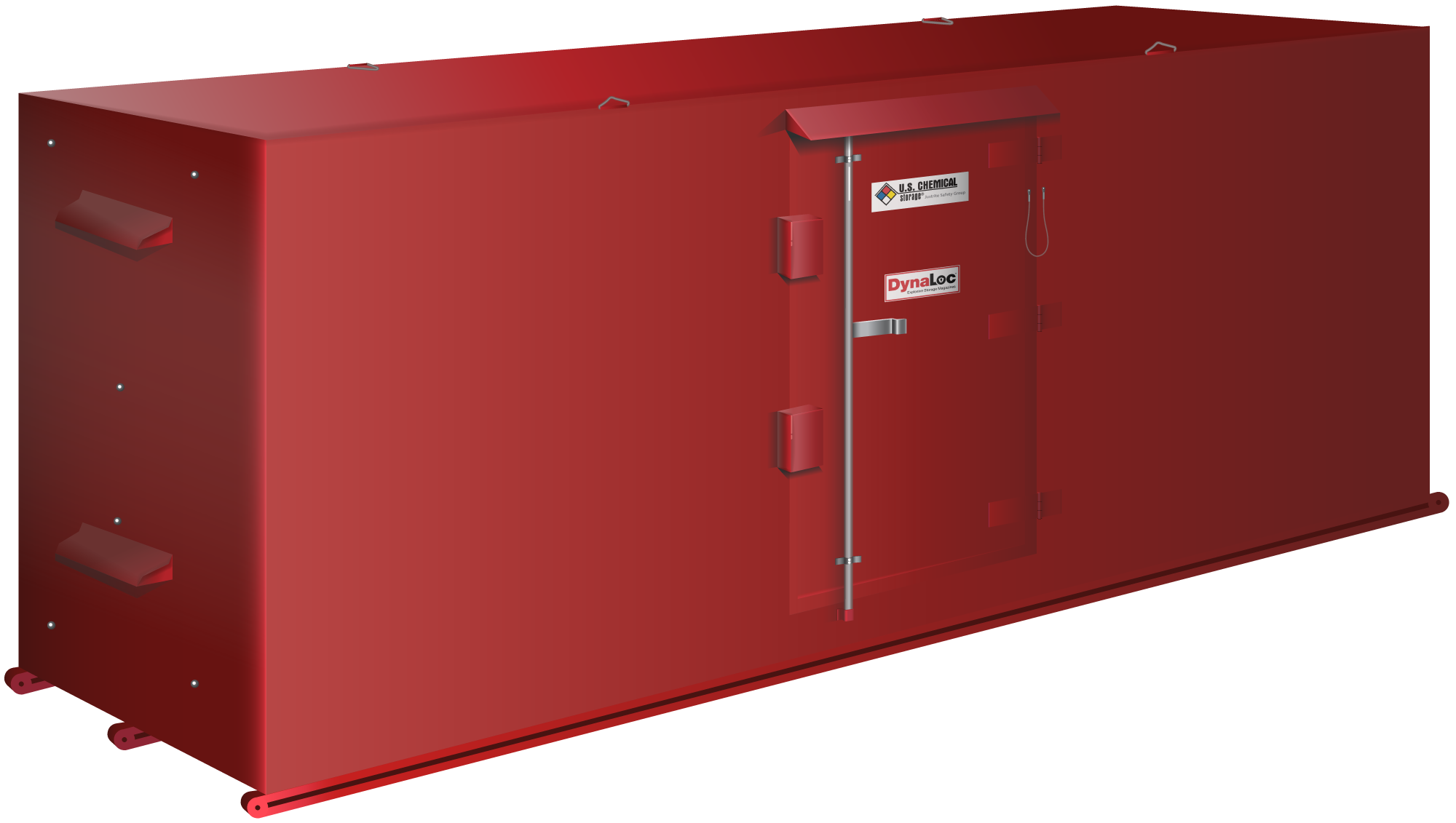

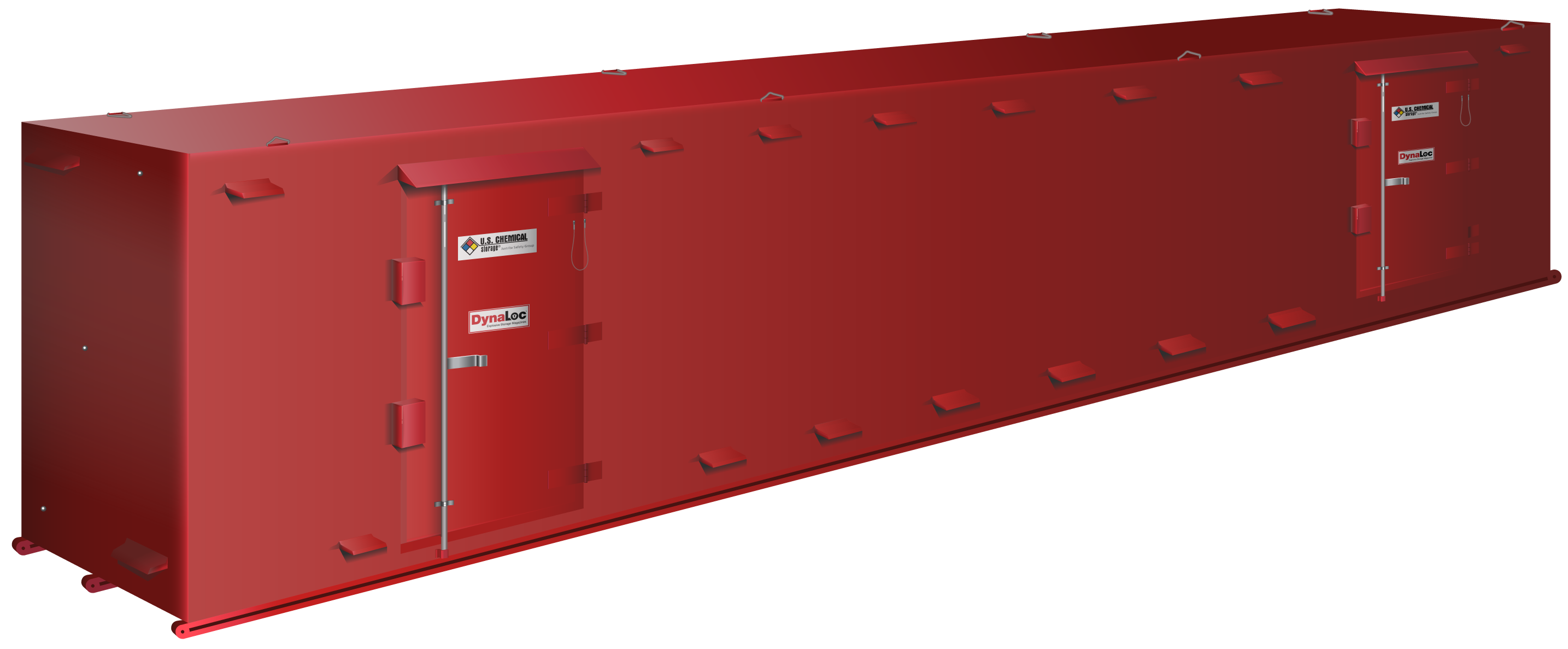

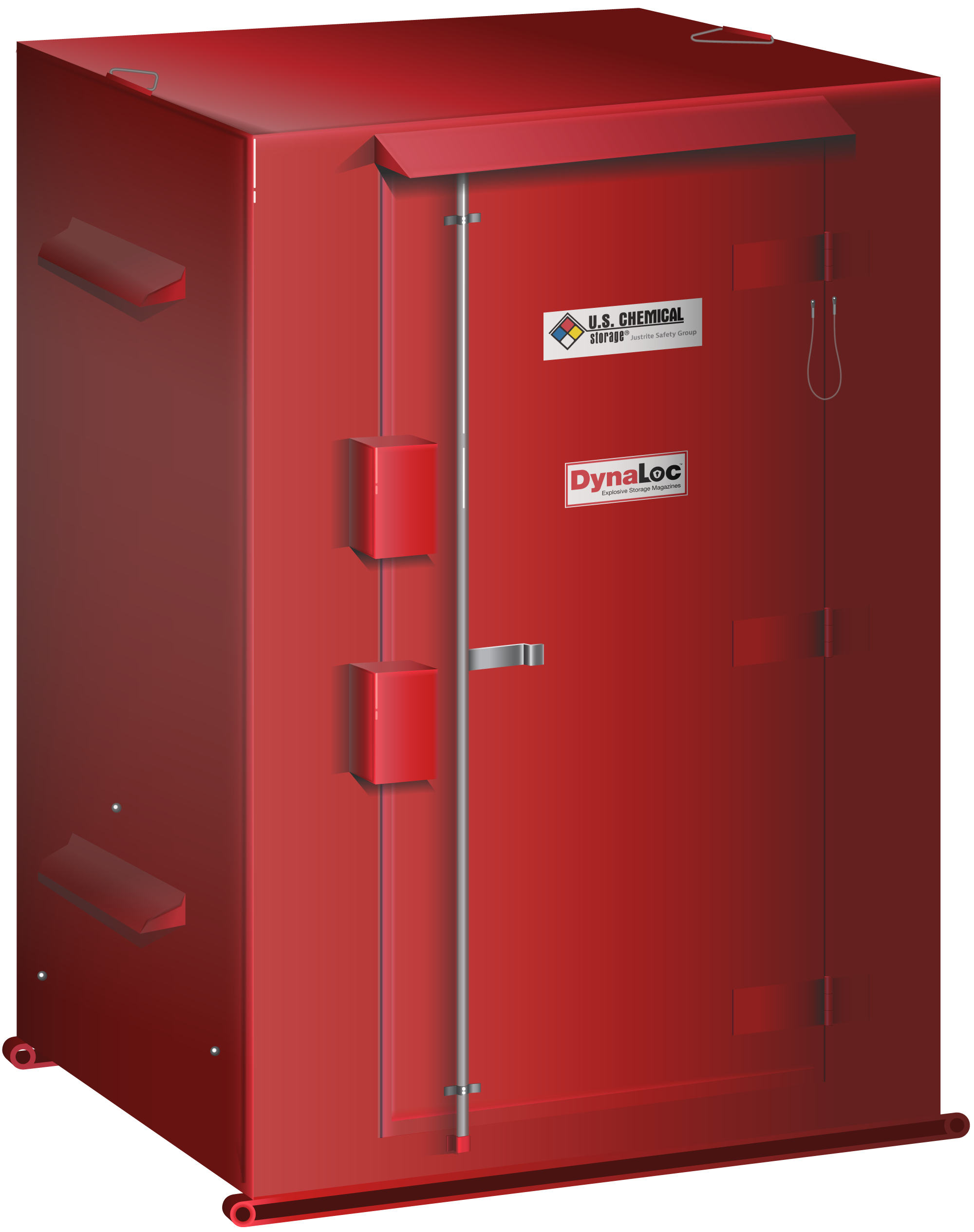

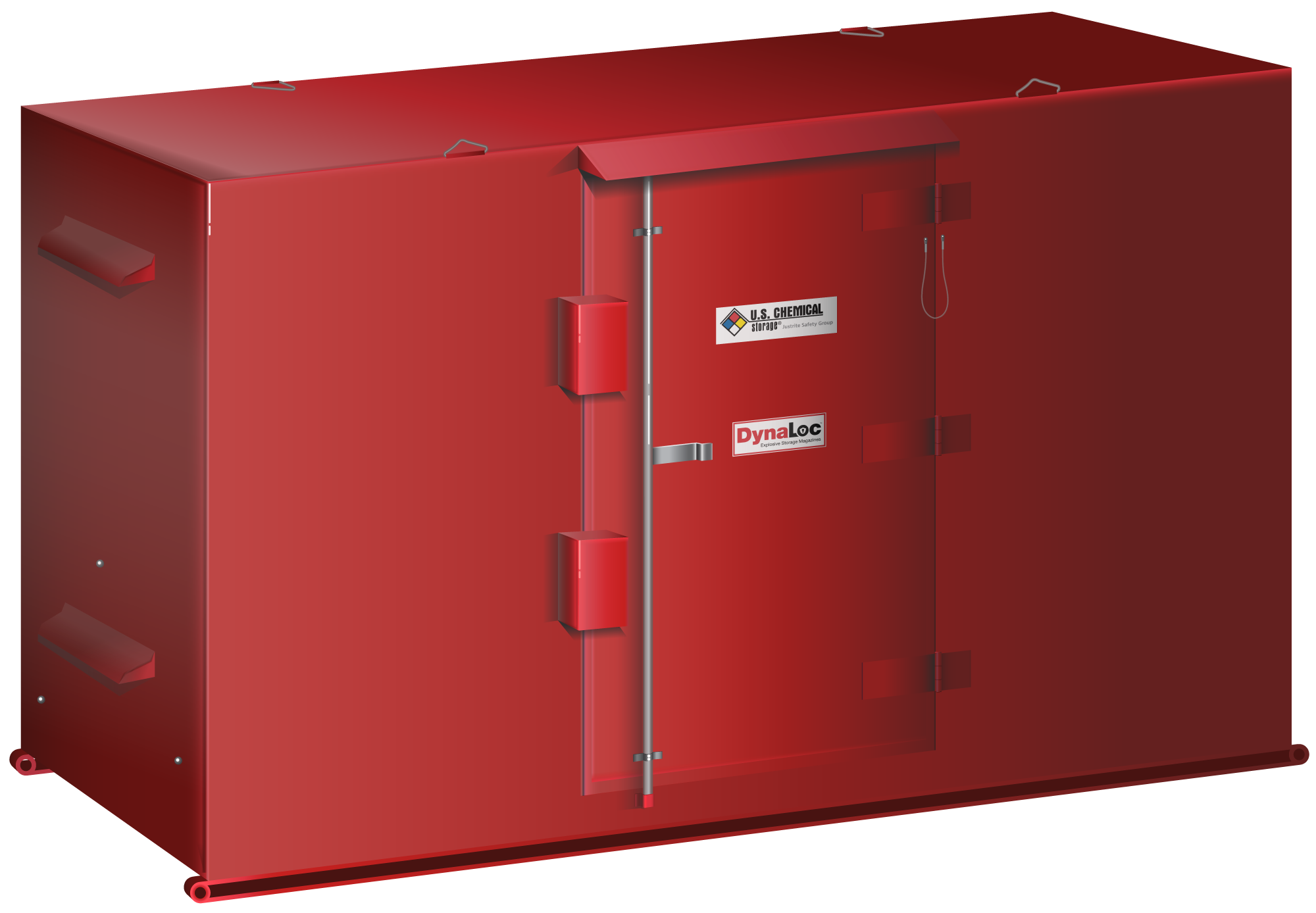

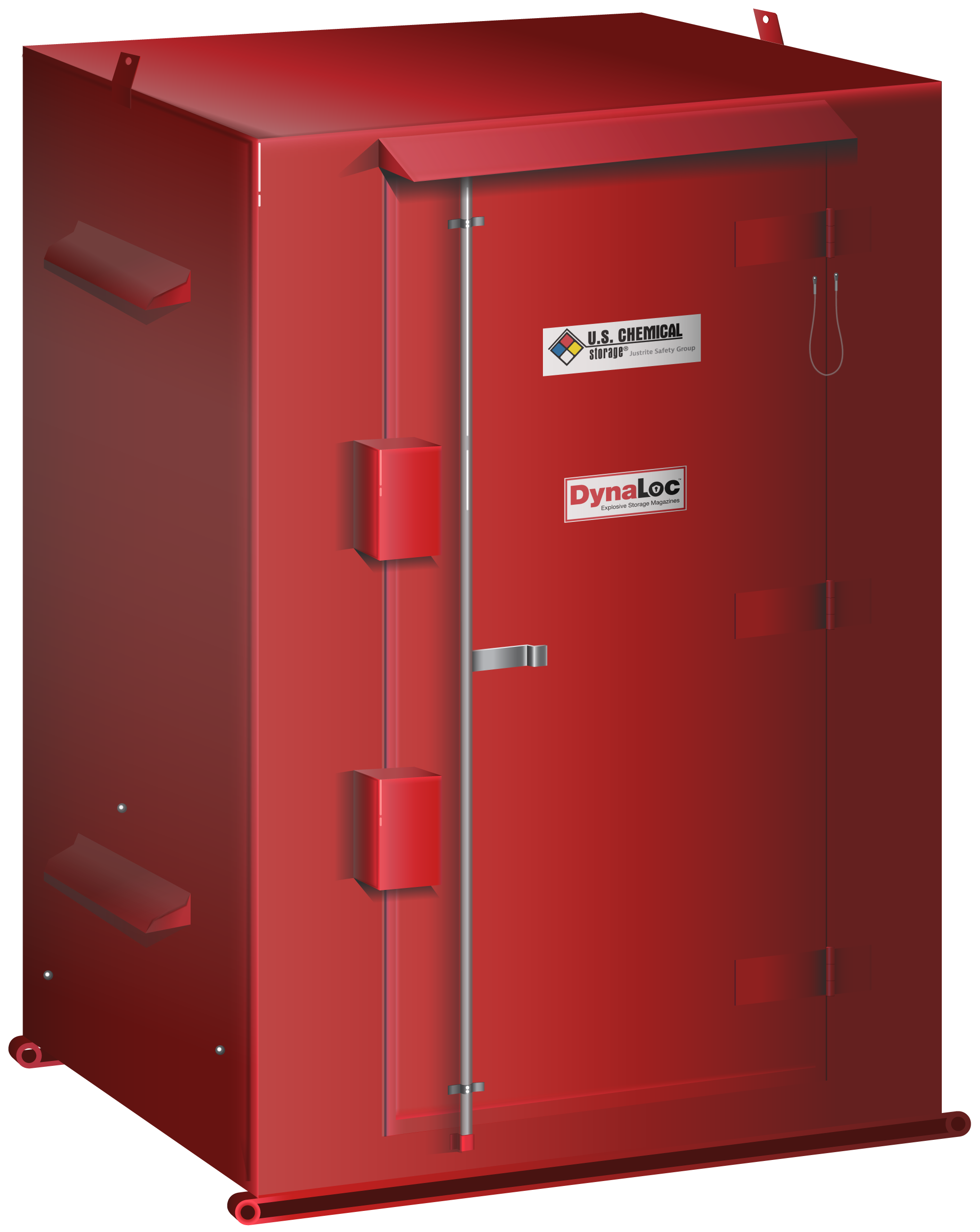

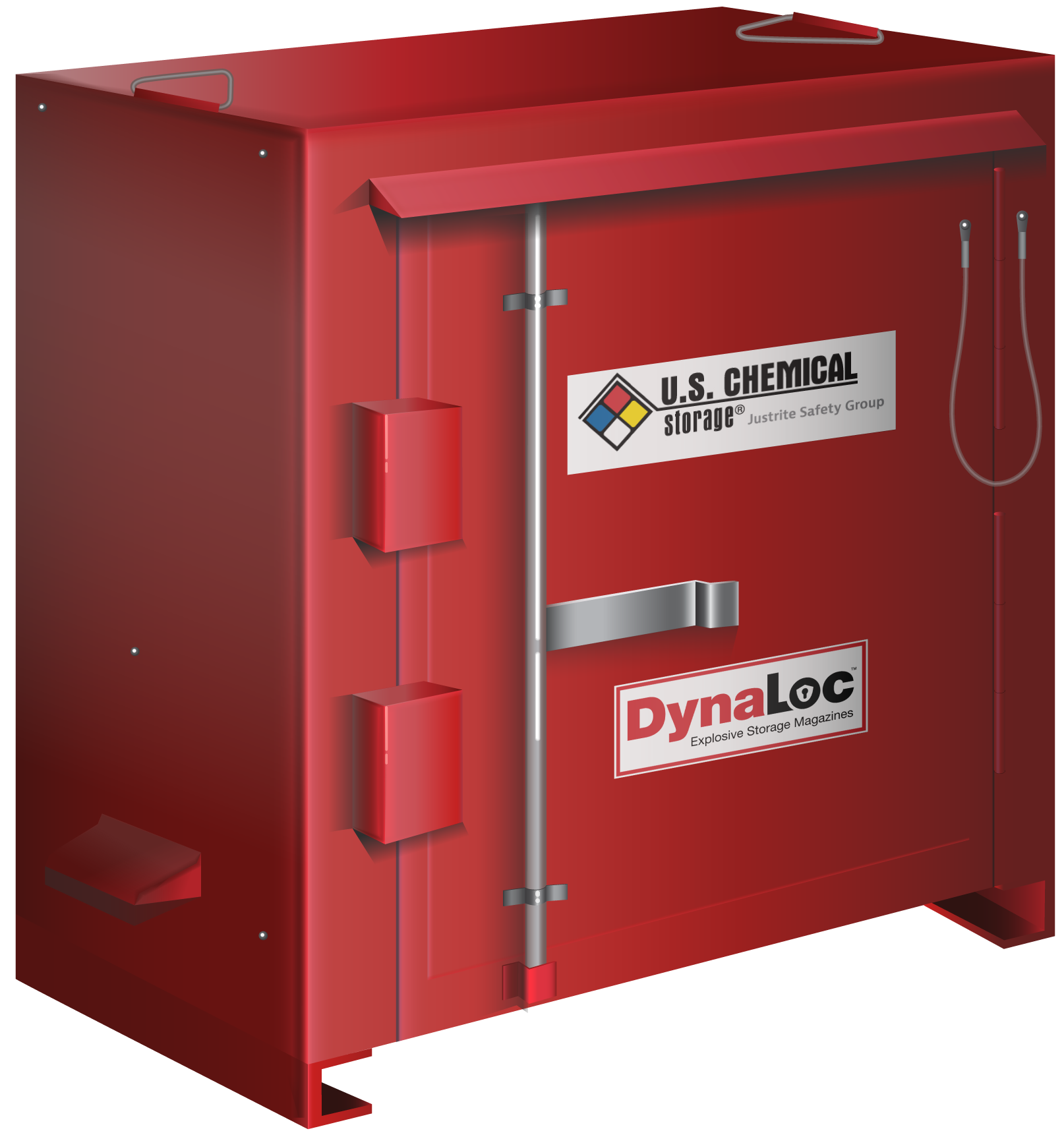

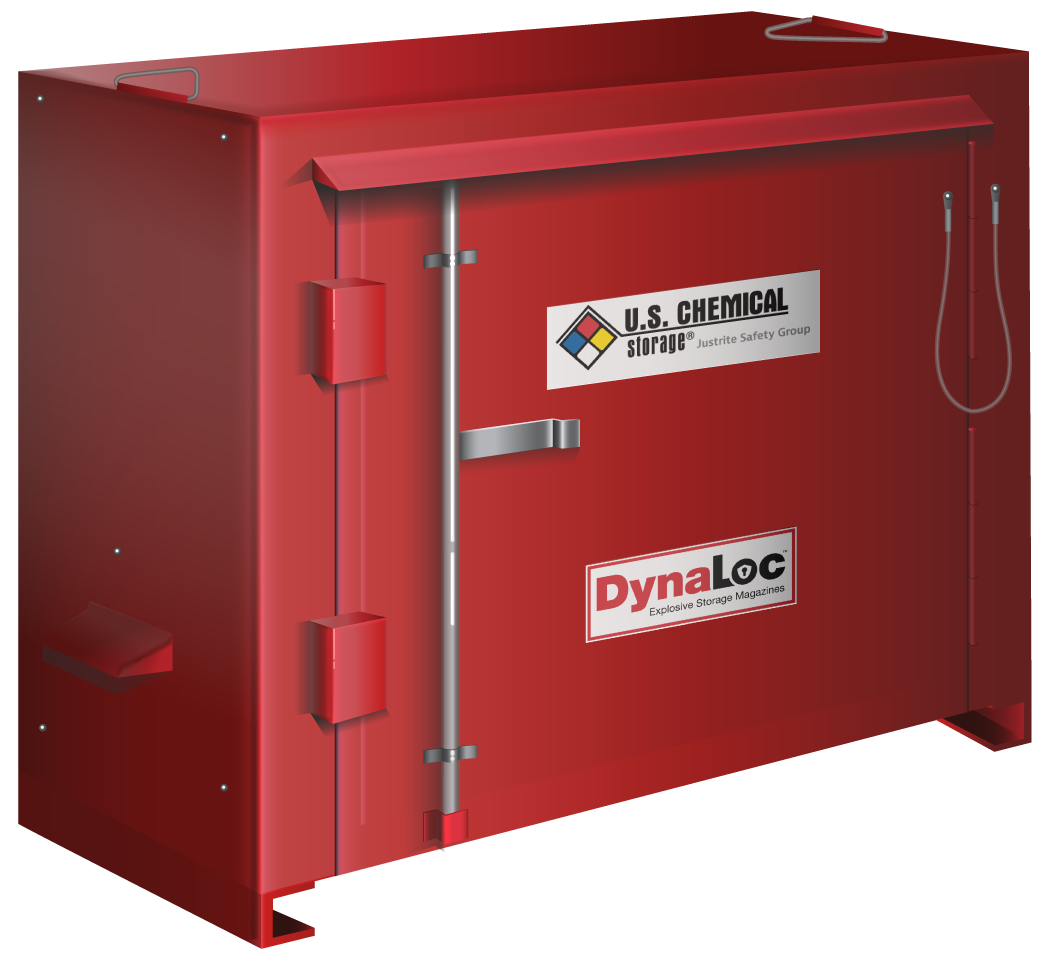

Type 2 Outdoor Storage Magazine Sizes

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 36 x 36 x 36 in (LxWxH)
Dimensions Interior: 29.5 x 29.5 x 32 in
Approximate Weight: 1160 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 42 x 42 x 36 in (LxWxH)
Dimensions Interior: 35.5 x 35.5 x 32 in
Approximate Weight: 1395.71 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 42 x 42 x 42 in (LxWxH)
Dimensions Interior: 35.5 x 35.5 x 38 in
Approximate Weight: 1540.75 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 48 x 48 x 48 in (LxWxH)
Dimensions Interior: 41.5 x 41.5 x 44 in
Approximate Weight: 1979.57 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 60 x 48 x 48 in (LxWxH)
Dimensions Interior: 53.5 x 41.5 x 44 in
Approximate Weight: 2274 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 72 x 48 x 48 in (LxWxH)
Dimensions Interior: 65.5 x 41.5 x 44 in
Approximate Weight: 2723.39 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 66 x 60 x 60 in (LxWxH)
Dimensions Interior: 59.5 x 53.5 x 56 in
Approximate Weight: 3346.48 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 60 x 48 x 84 in (LxWxH)
Dimensions Interior: 53.5 x 41.5 x 80 in
Approximate Weight: 3522.12 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 60 x 60 x 84 in (LxWxH)
Dimensions Interior: 53.5 x 53.5 x 80 in
Approximate Weight: 3983.35 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 72 x 72 x 72 in (LxWxH)
Dimensions Interior: 65.5 x 65.5 x 68 in
Approximate Weight: 4468.28 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 72 x 72 x 96 in (LxWxH)
Dimensions Interior: 65.5 x 65.5 x 92 in
Approximate Weight: 5454.05 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 84 x 66 x 84 in (LxWxH)
Dimensions Interior: 77.5 x 59.5 x 80 in
Approximate Weight: 5213.44 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 84 x 84 x 84 in (LxWxH)
Dimensions Interior: 77.5 x 77.5 x 80 in
Approximate Weight: 6006.33 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 96 x 84 x 84 in (LxWxH)
Dimensions Interior: 89.5 x 77.5 x 80 in
Approximate Weight: 6592 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 132 x 84 x 84 in (LxWxH)
Dimensions Interior: 126 x 77.5 x 80 in
Approximate Weight: 8411.41 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 144 x 84 x 84 in (LxWxH)
Dimensions Interior: 138 x 77.5 x 80 in
Approximate Weight: 9011.22 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 168 x 84 x 84 in (LxWxH)
Dimensions Interior: 162 x 77.5 x 80 in
Approximate Weight: 10139.02 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 144 x 96 x 90 in (LxWxH)
Dimensions Interior: 138 x 89.5 x 86 in
Approximate Weight: 10130.11 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 192 x 84 x 84 in (LxWxH)
Dimensions Interior: 186 x 77.5 x 80 in
Approximate Weight: 11303 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 240 x 84 x 84 in (LxWxH)
Dimensions Interior: 234 x 77.5 x 80 in
Approximate Weight: 13594.25 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 264 x 84 x 84 in (LxWxH)
Dimensions Interior: 258 x 77.5 x 80 in
Approximate Weight: 14722.06 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 240 x 96 x 90 in (LxWxH)
Dimensions Interior: 234 x 89.5 x 86 in
Approximate Weight: 15157.95 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 240 x 96 x 96 in (LxWxH)
Dimensions Interior: 234 x 89.5 x 92 in
Approximate Weight: 15733 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 288 x 96 x 96 in (LxWxH)
Dimensions Interior: 282 x 89.5 x 92 in
Approximate Weight: 18328.85 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 336 x 96 x 96 in (LxWxH)
Dimensions Interior: 330 x 89.5 x 92 in
Approximate Weight: 21016.58 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 384 x 96 x 96 in (LxWxH)
Dimensions Interior: 378 x 89.5 x 92 in
Approximate Weight: 23612.62 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 432 x 96 x 96 in (LxWxH)
Dimensions Interior: 426 x 89.5 x 92 in
Approximate Weight: 26208.65 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 480 x 96 x 96 in (LxWxH)
Dimensions Interior: 474 x 89.5 x 92 in
Approximate Weight: 28805 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 480 x 120 x 96 in (LxWxH)
Dimensions Interior: 474 x 114 x 89 in
Approximate Weight: 33367.96 lbs.

Type 2 Outdoor Storage Magazine

Dimensions Exterior: 480 x 120 x 120 in (LxWxH)
Dimensions Interior: 474 x 114 x 113 in
Approximate Weight: 37474.32 lbs.
