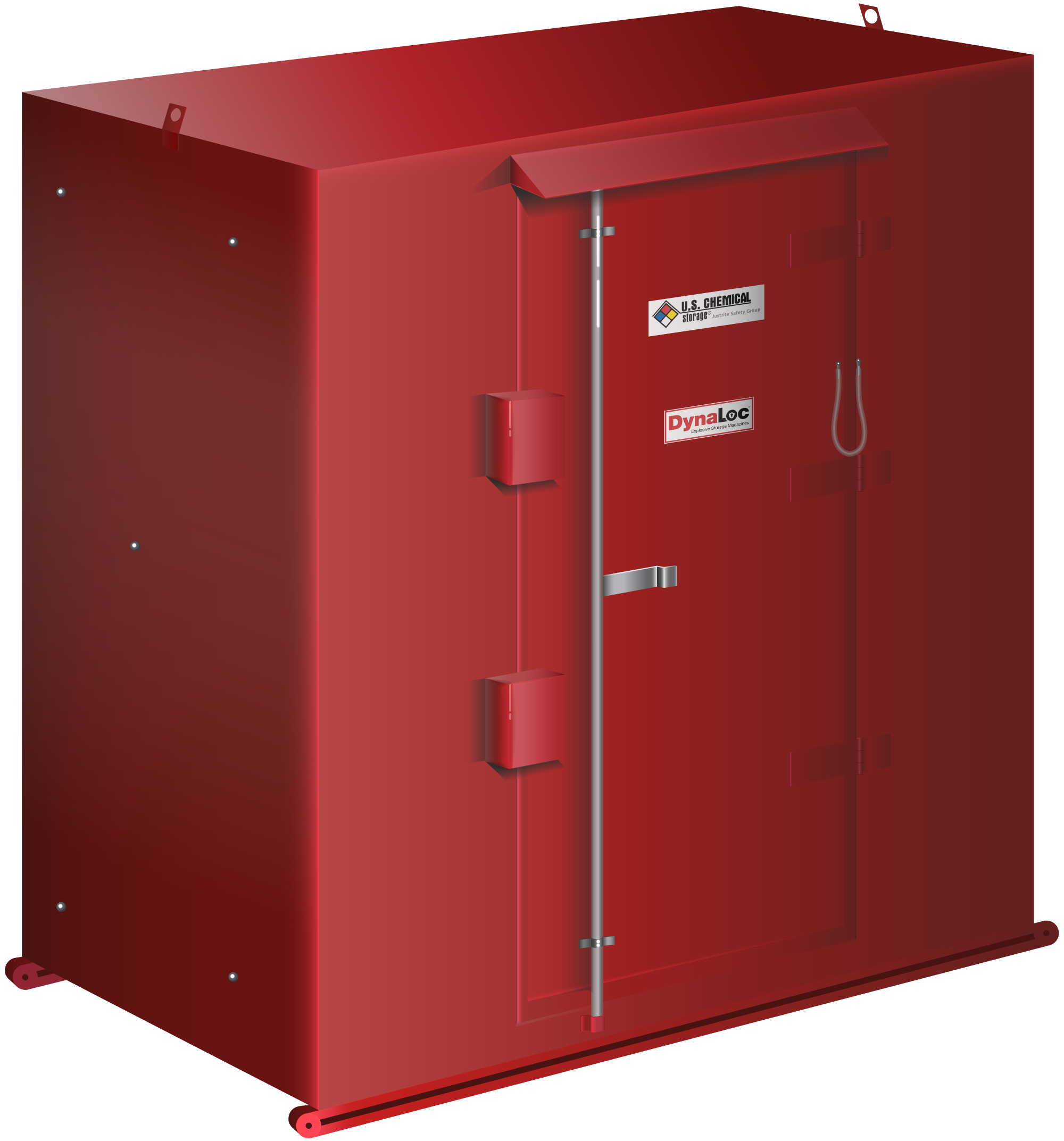

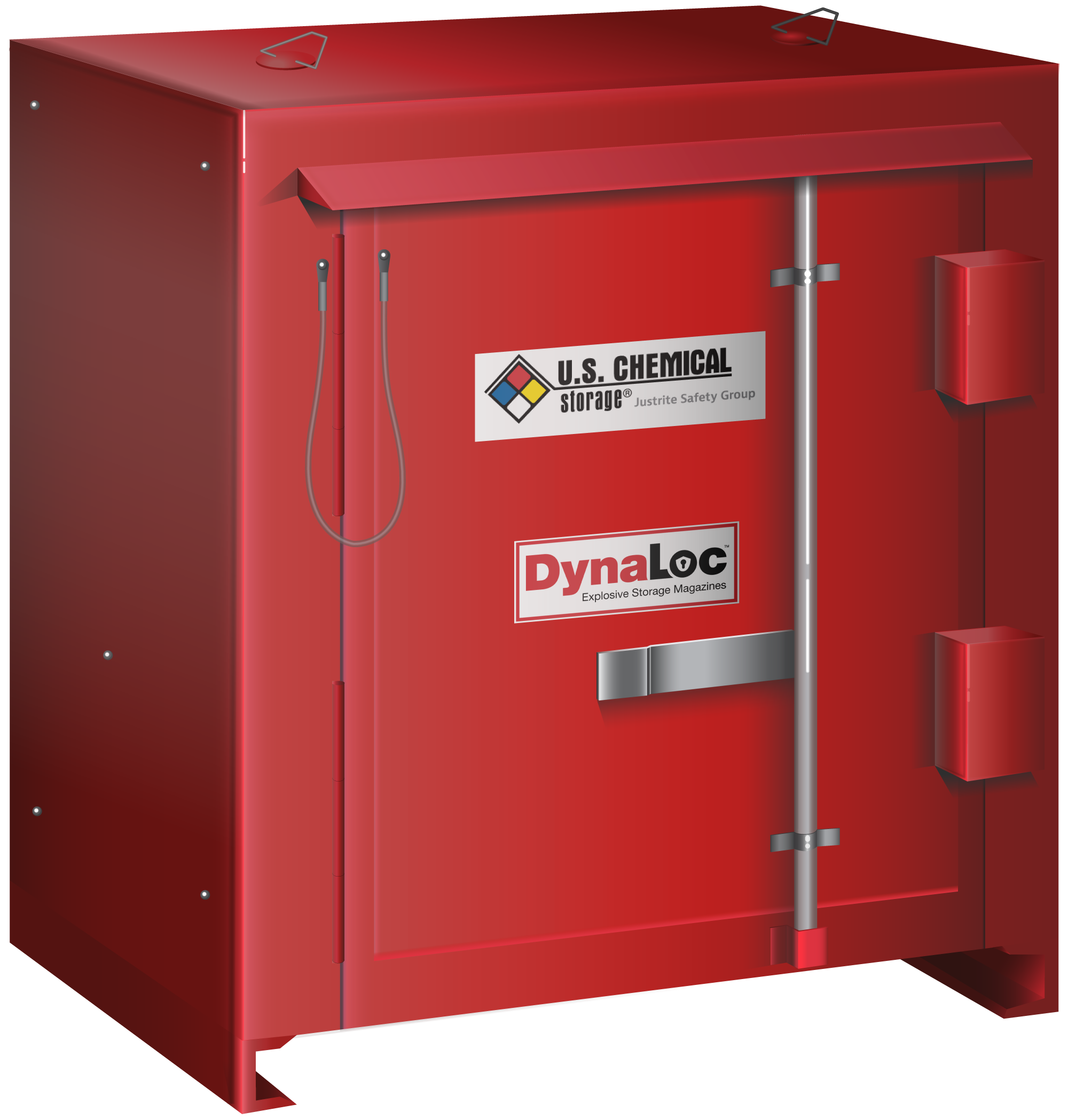

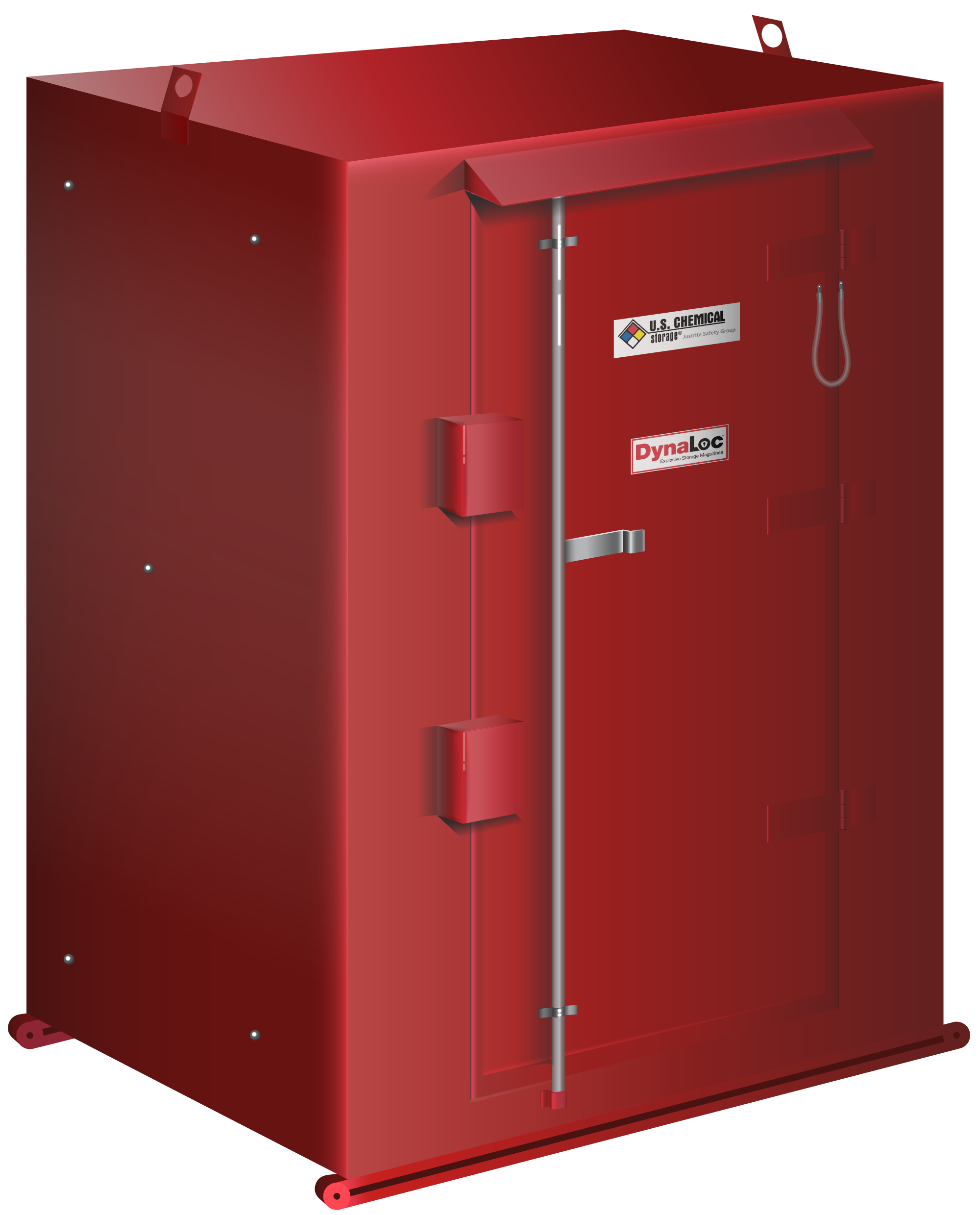

DynaLoc™ Type 4 Explosive Magazine for Low Explosives

Call for Price

U.S. Chemical Storage engineers durable Type 4 explosive magazine storage for indoor or outdoor storage of your low explosives. Each explosive storage magazine features forklift pockets and crane lifting eyes for easy relocation.

Category:

Description

Manufacturer: U.S Chemical Storage

U.S. Chemical Storage engineers durable Type 4 explosive magazine storage for indoor or outdoor storage of your low explosives. Each explosive storage magazine features forklift pockets and crane lifting eyes for easy relocation.

Type 4 Magazine Storage Features & Benefits

  • Fire-resistant
  • Weather resistant (not required for indoors)
  • Theft-resistant
  • Optional detonator box
  • 12-gauge steel construction lined with ¾-inch of hardwood or non-sparking material
  • Double locking door system features ¼-inch steel hood for security
  • Designed to mount on open channel construction to prevent contact with the ground
  • 25 standard models

Explosive Storage Magazine Compliance

All magazines meet and exceed:

  • ATF 27 CFR, Part 555.208
  • DoD 5100

Common Applications

  • Black powder and ammunition storage
  • Fireworks/pyrotechnics storage

Type 4 Storage Magazine Sizes

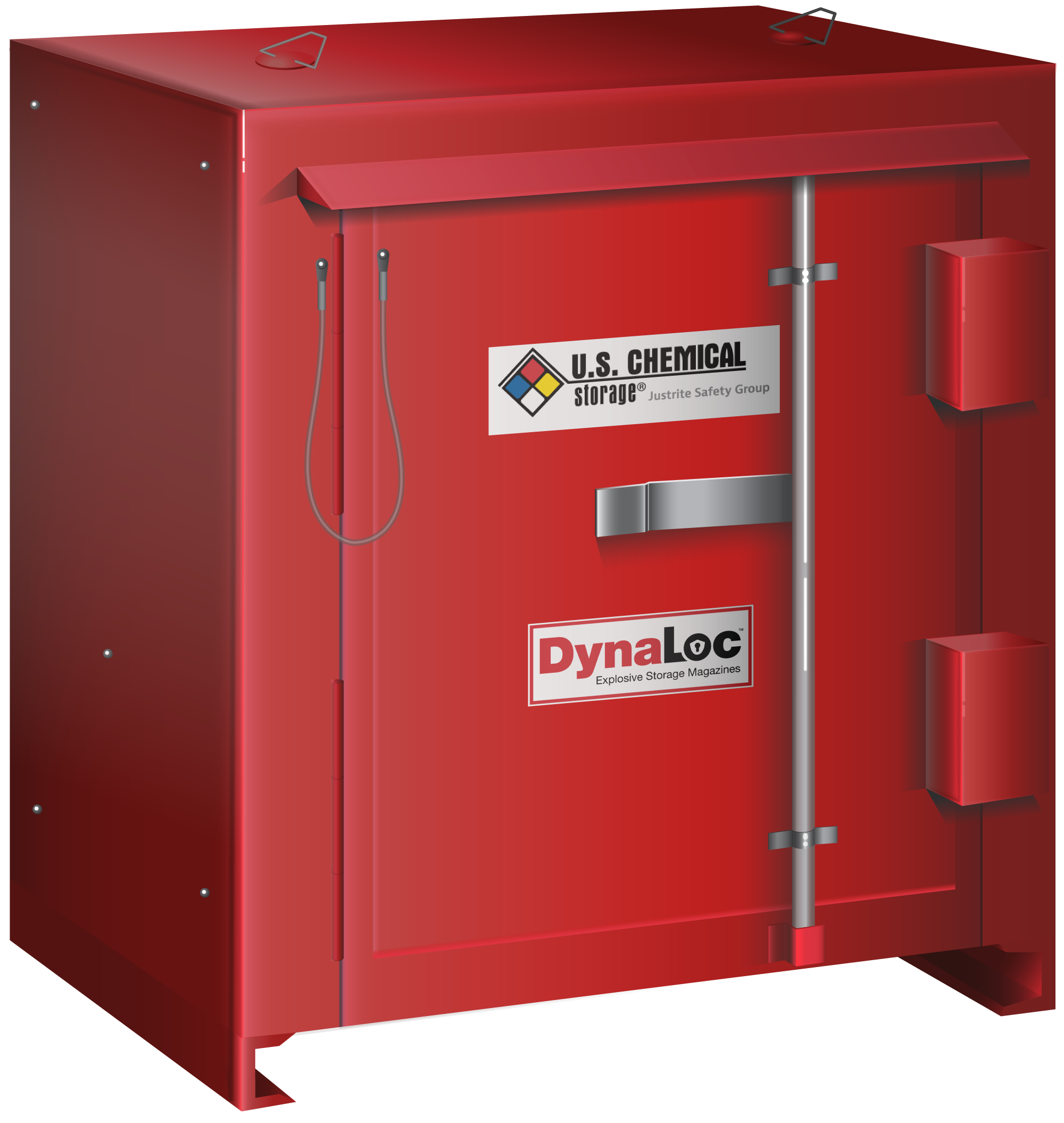

Type 4 Magazine

Dimensions Exterior: 36 x 36 x 36 in (LxWxH)
Dimensions Interior: 34.8 x 34.8 x 34.8 in

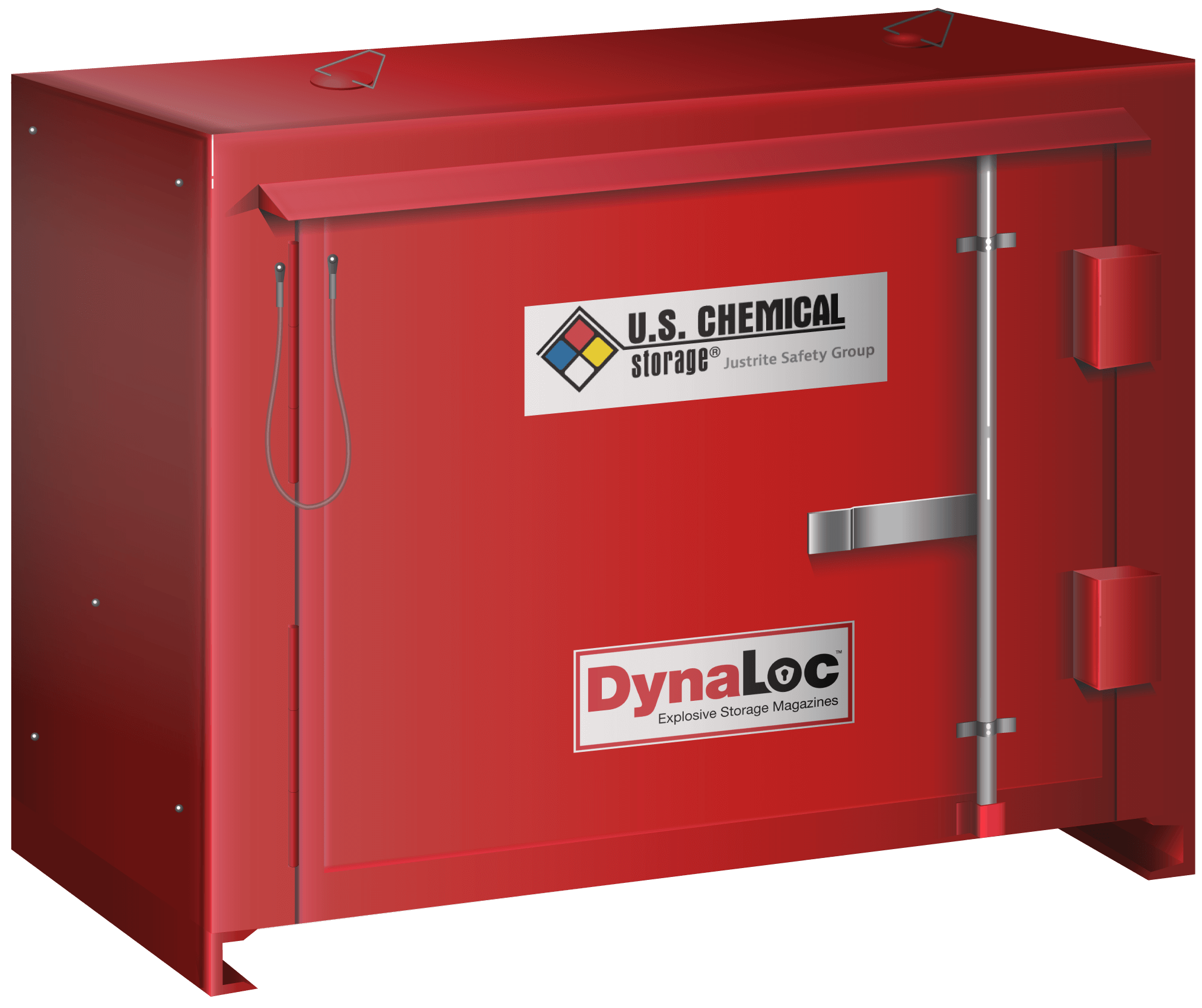

Type 4 Magazine

Dimensions Exterior: 42 x 42 x 36 in (LxWxH)
Dimensions Interior: 40.8 x 40.8 x 34.8 in

Type 4 Magazine

Dimensions Exterior: 42 x 42 x 42 in (LxWxH)
Dimensions Interior: 40.8 x 40.8 x 40.8 in

Type 4 Magazine

Dimensions Exterior: 48 x 48 x 48 in (LxWxH)
Dimensions Interior: 46.8 x 46.8 x 46.8 in

Type 4 Magazine

Dimensions Exterior: 60 x 48 x 48 in (LxWxH)
Dimensions Interior: 58.8 x 46.8 x 46.8 in

Type 4 Magazine

Dimensions Exterior: 72 x 48 x 48 in (LxWxH)
Dimensions Interior: 63 x 39 x 43.8 in

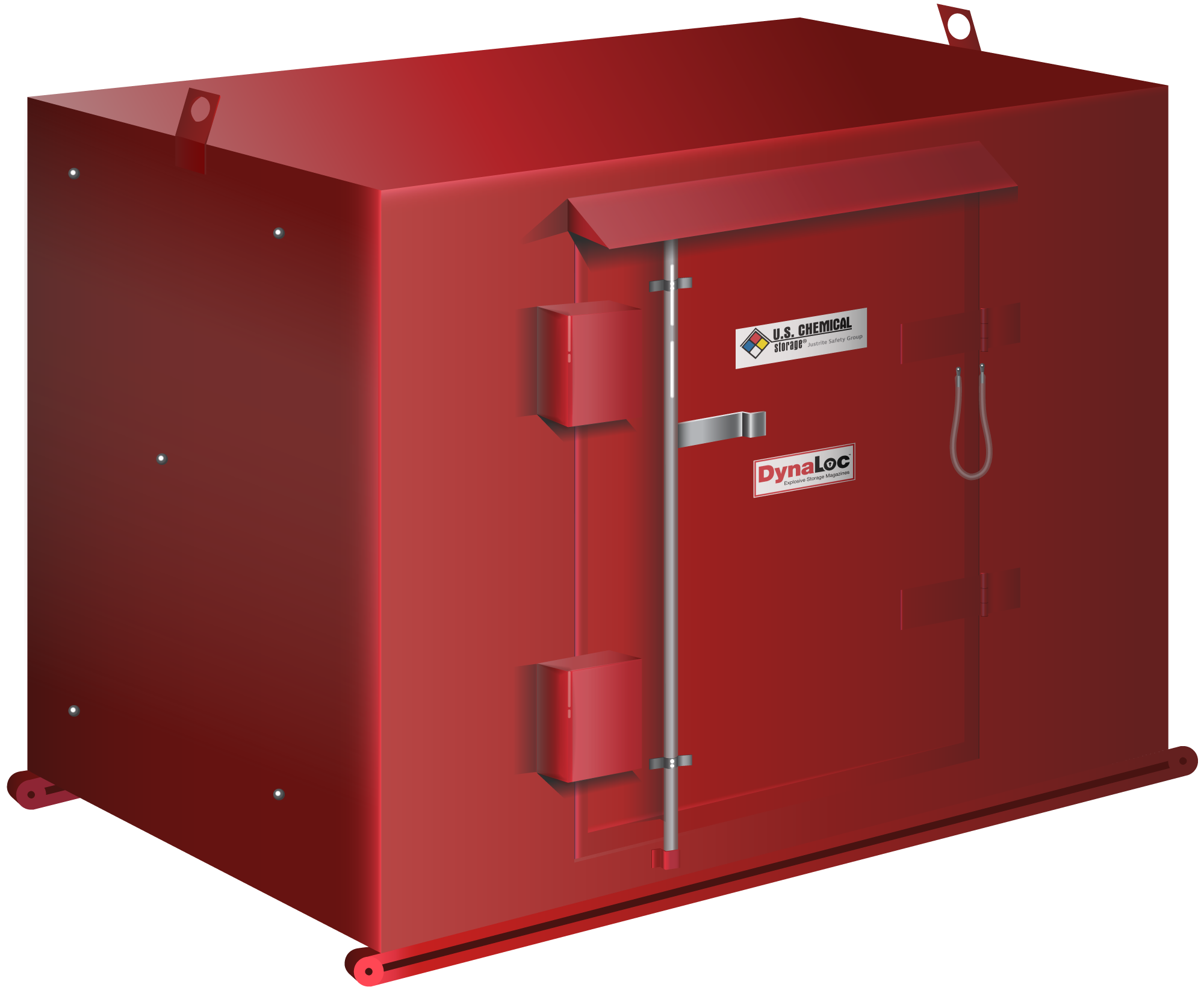

Type 4 Magazine

Dimensions Exterior: 66 x 60 x 60 in (LxWxH)
Dimensions Interior: 57 x 51 x 55.8 in

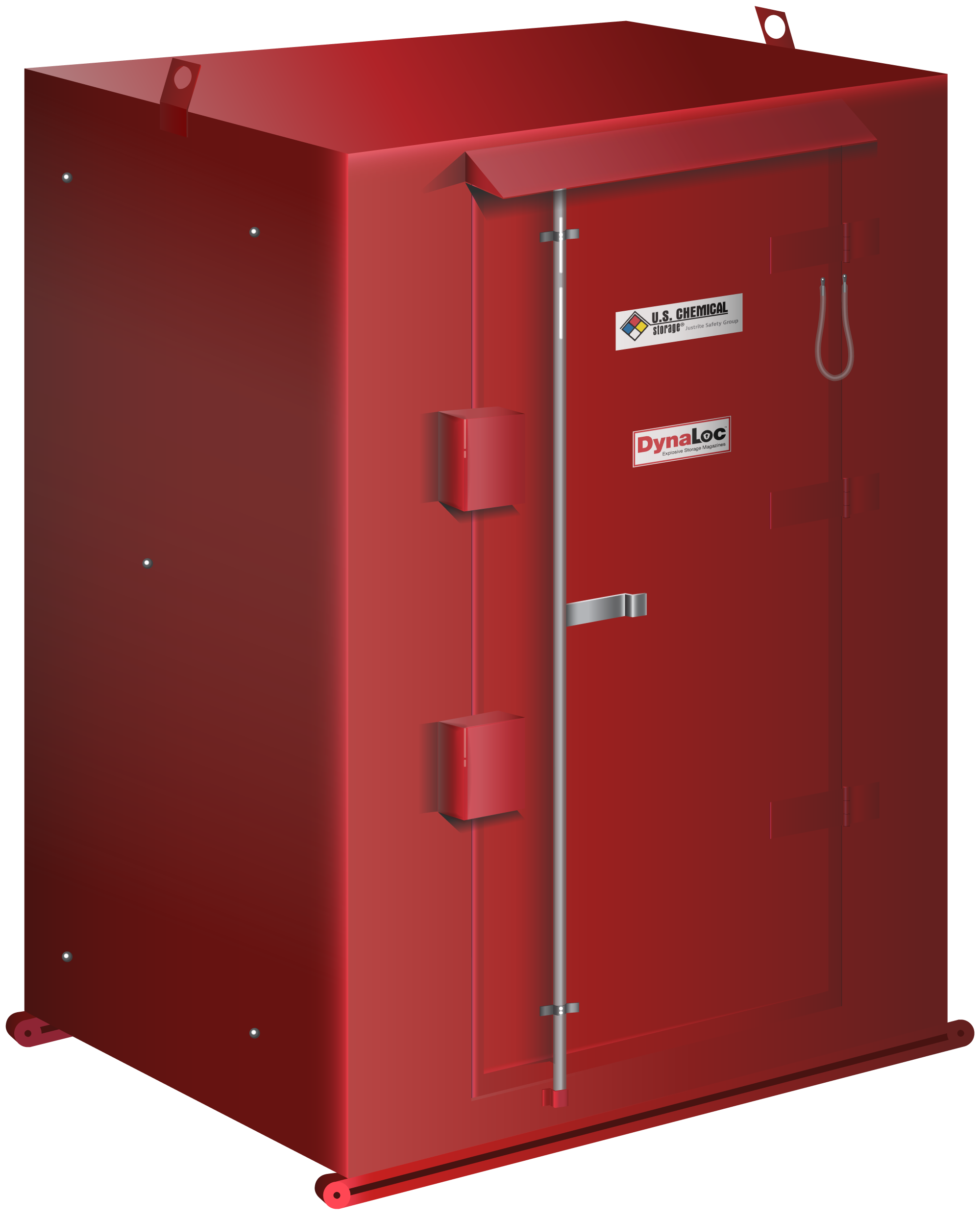

Type 4 Magazine

Dimensions Exterior: 60 x 48 x 84 in (LxWxH)
Dimensions Interior: 51 x 39 x 79.8 in

Type 4 Magazine

Dimensions Exterior: 60 x 60 x 84 in (LxWxH)
Dimensions Interior: 51 x 51 x 79.8 in

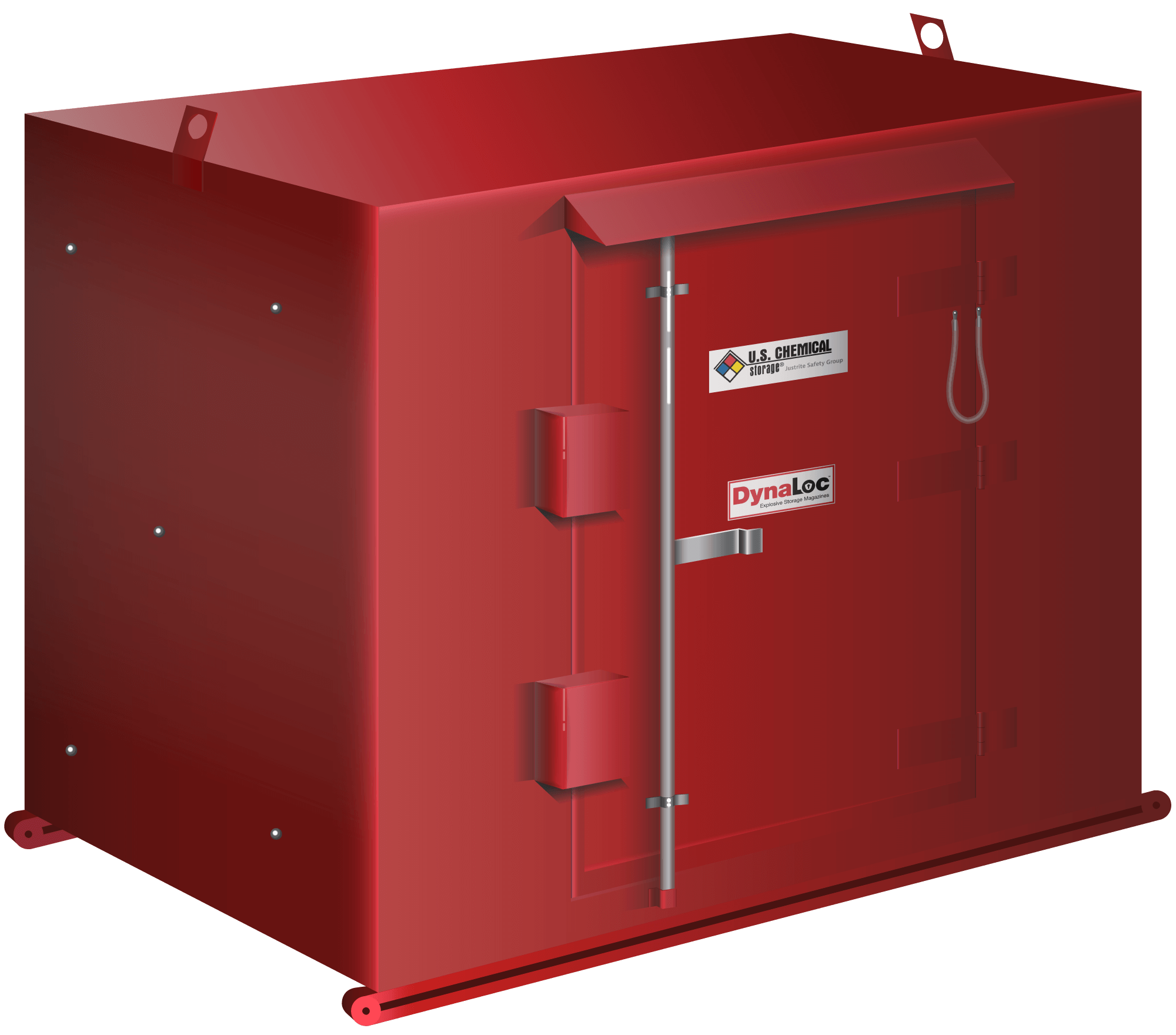

Type 4 Magazine

Dimensions Exterior: 72 x 72 x 72 in (LxWxH)
Dimensions Interior: 63 x 63 x 67.8 in

Type 4 Magazine

Dimensions Exterior: 84 x 66 x 84 in (LxWxH)
Dimensions Interior: 75 x 57 x 79.8 in

Type 4 Magazine

Dimensions Exterior: 84 x 84 x 84 in (LxWxH)
Dimensions Interior: 75 x 75 x 79.8 in

Type 4 Magazine

Dimensions Exterior: 96 x 84 x 84 in (LxWxH)
Dimensions Interior: 87 x 75 x 79.8 in

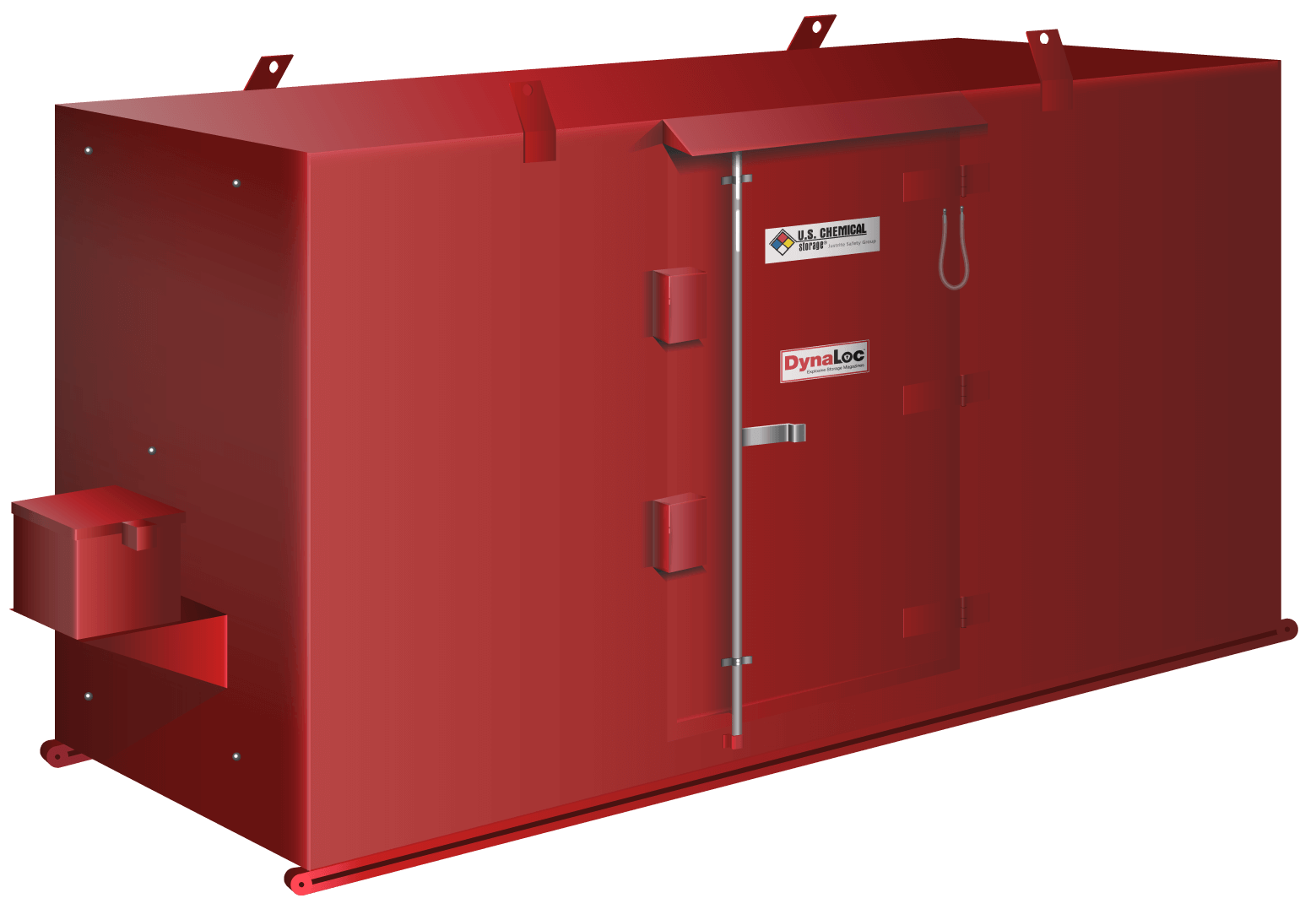

Type 4 Magazine

Dimensions Exterior: 132 x 84 x 84 in (LxWxH)
Dimensions Interior: 123 x 75 x 79.8 in

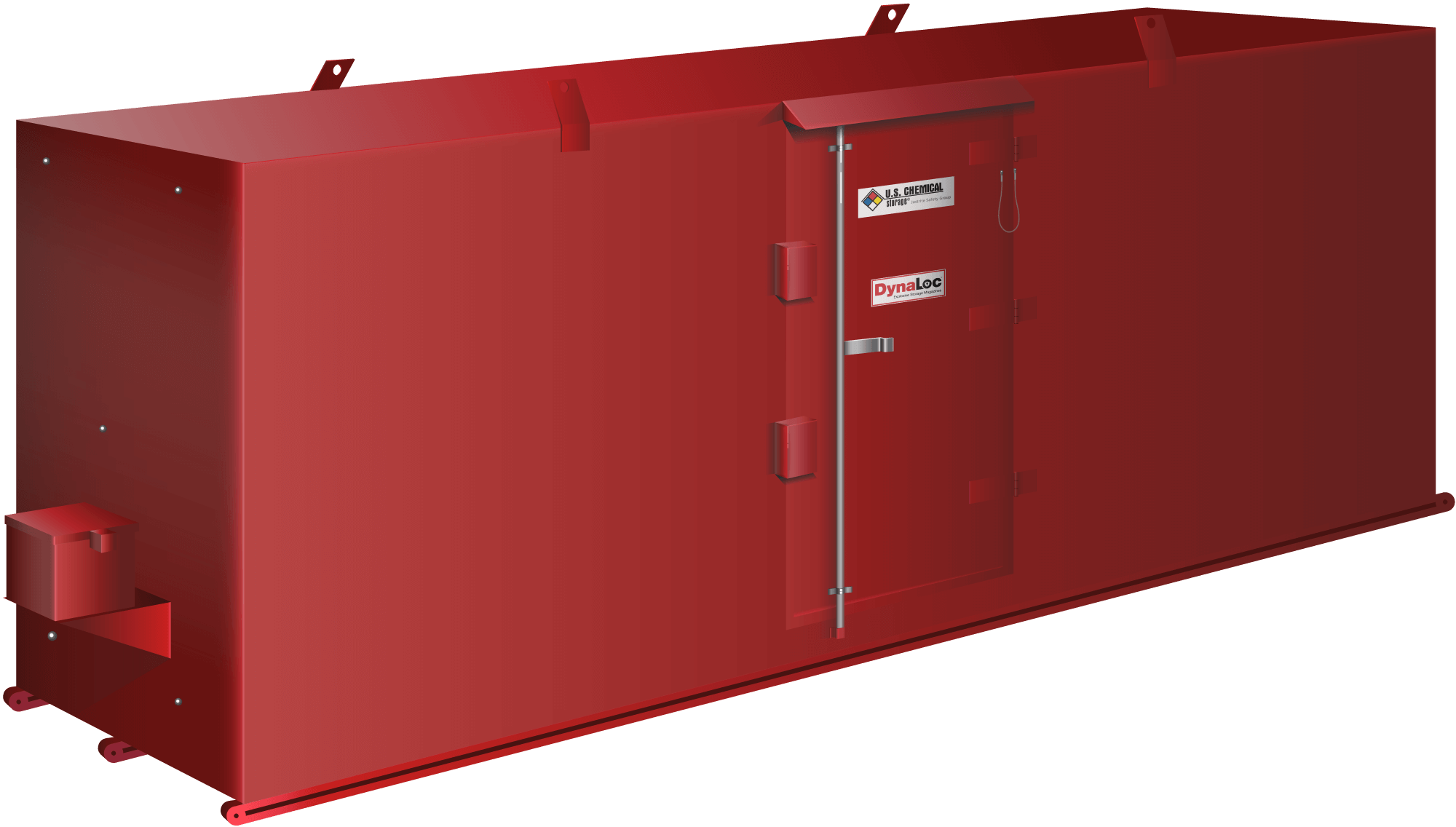

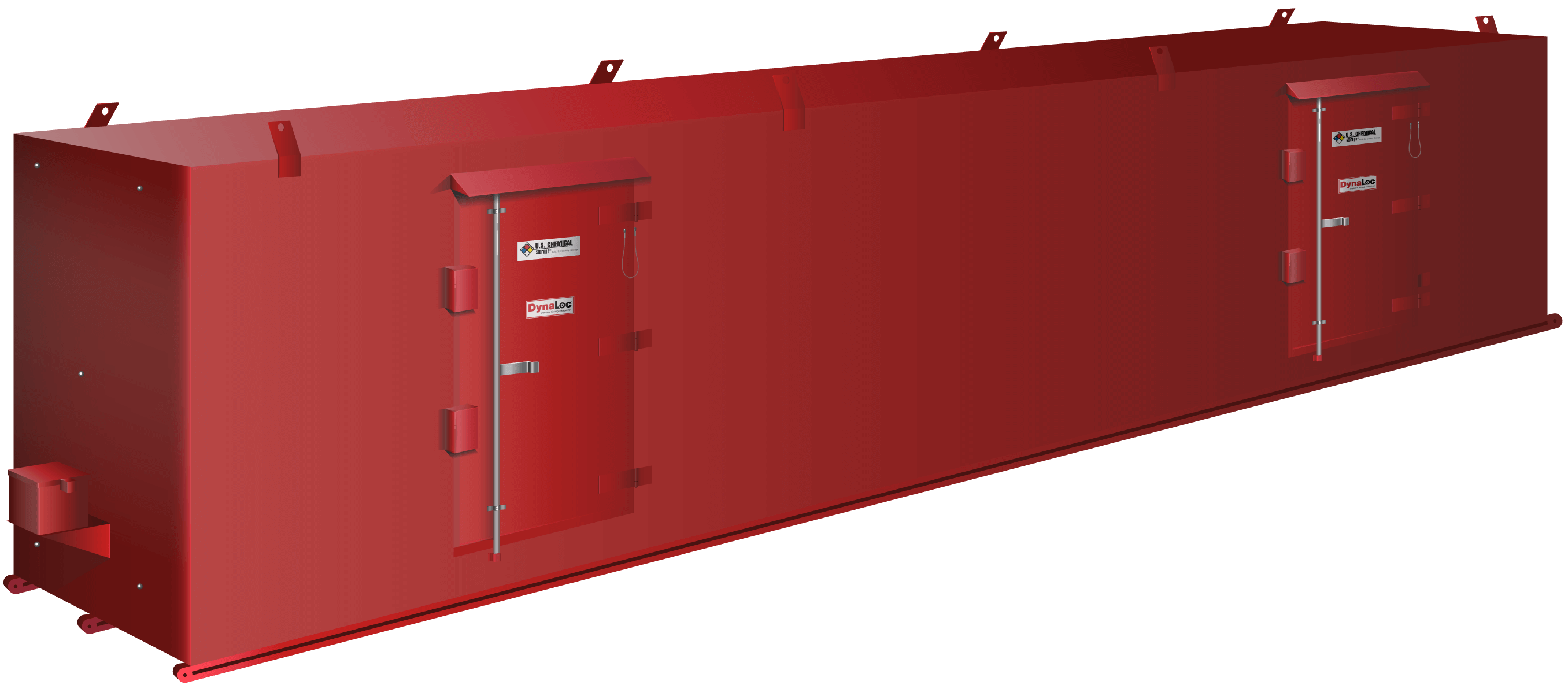

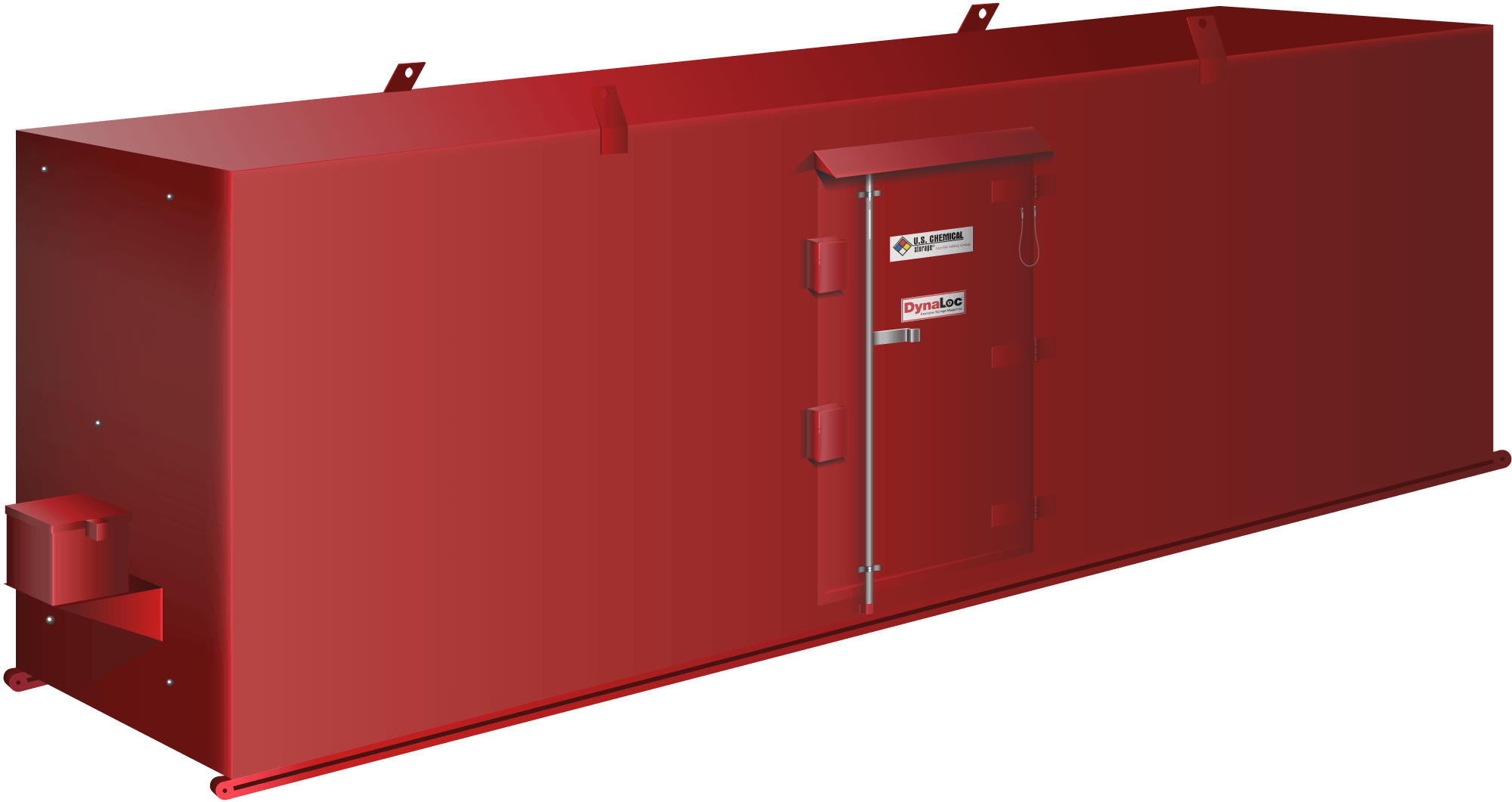

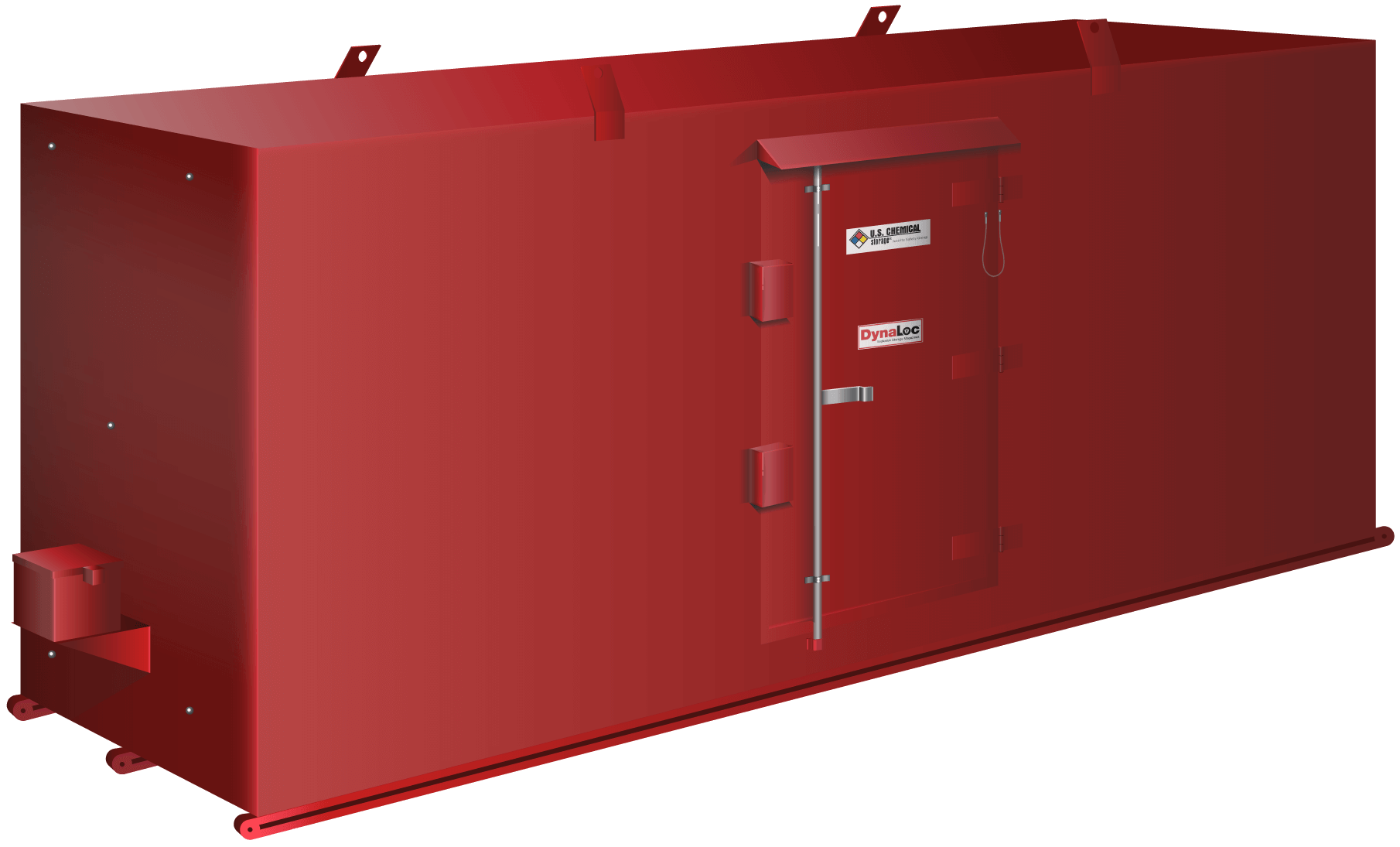

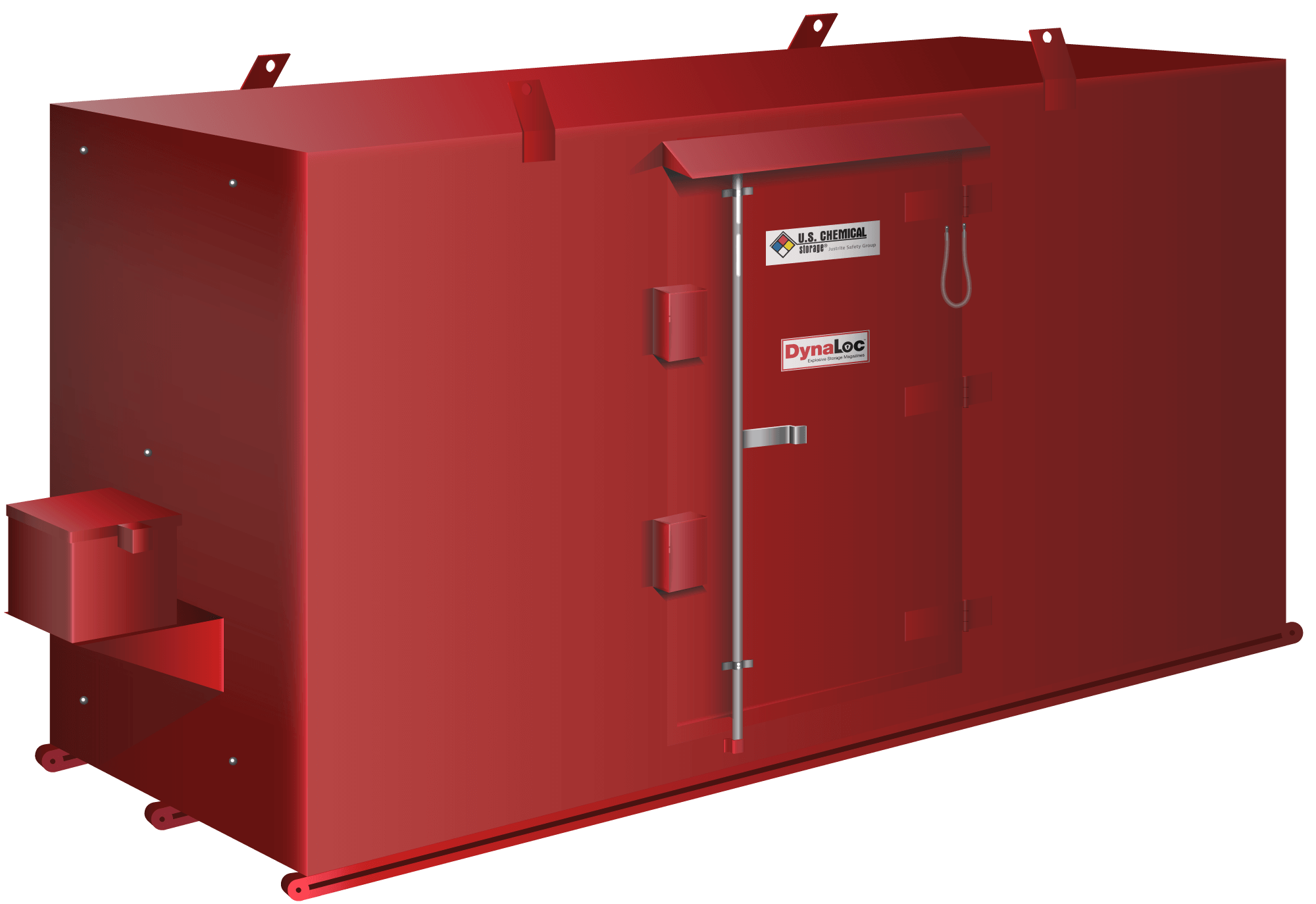

Optional detonator box

Type 4 Magazine

Dimensions Exterior: 144 x 84 x 84 in (LxWxH)
Dimensions Interior: 135 x 75 x 79.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 144 x 96 x 90 in (LxWxH)
Dimensions Interior: 135 x 87 x 85.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 240 x 84 x 84 in (LxWxH)
Dimensions Interior: 231 x 75 x 79.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 264 x 84 x 84 in (LxWxH)
Dimensions Interior: 255 x 75 x 79.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 240 x 96 x 90 in (LxWxH)
Dimensions Interior: 231 x 87 x 85.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 240 x 96 x 96 in (LxWxH)
Dimensions Interior: 231 x 87 x 91.8 in
Optional detonator box

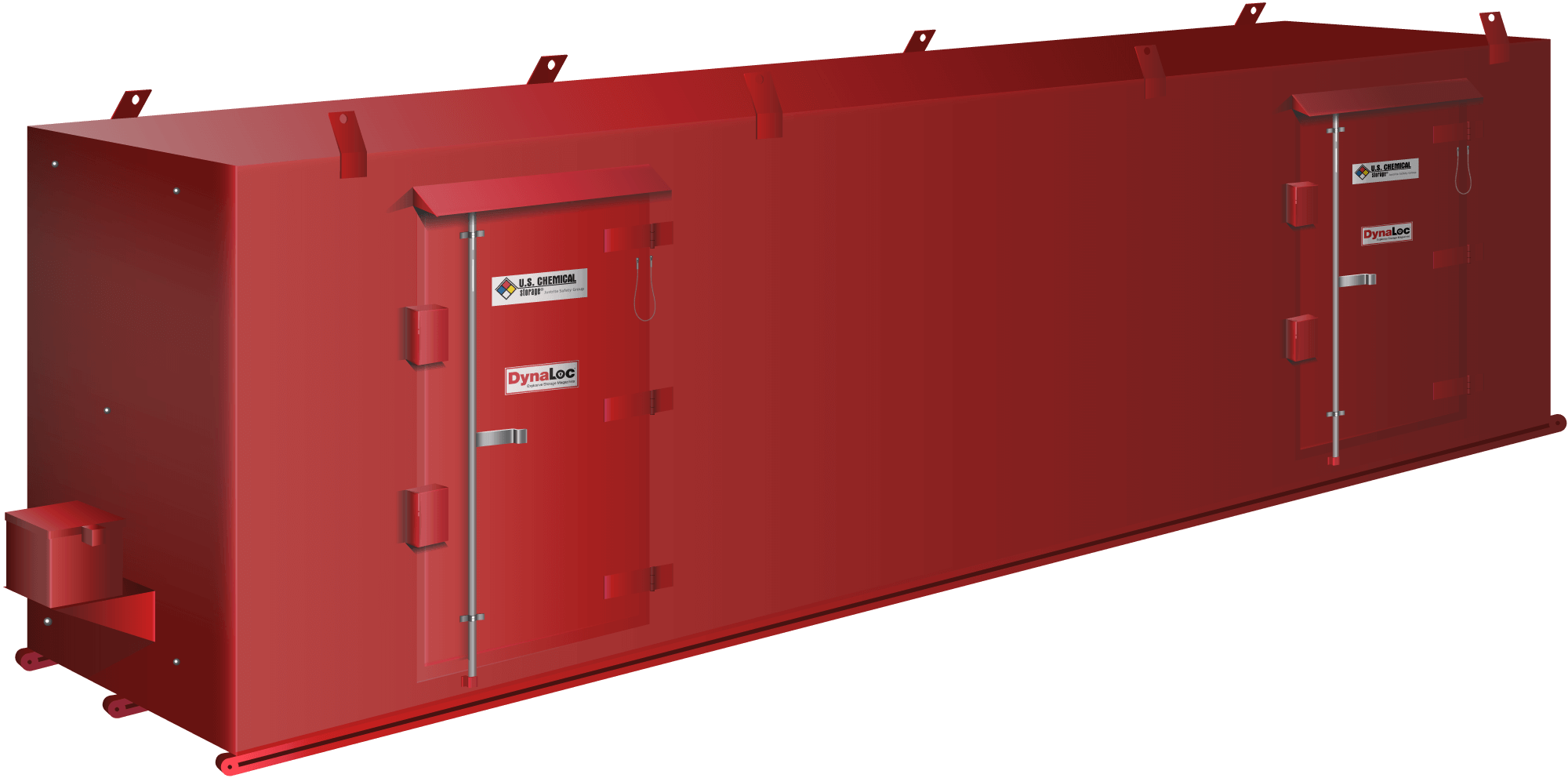

Type 4 Magazine

Dimensions Exterior: 288 x 96 x 96 in (LxWxH)
Dimensions Interior: 279 x 87 x 91.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 336 x 96 x 96 in (LxWxH)
Dimensions Interior: 327 x 87 x 91.8 in
Optional detonator box

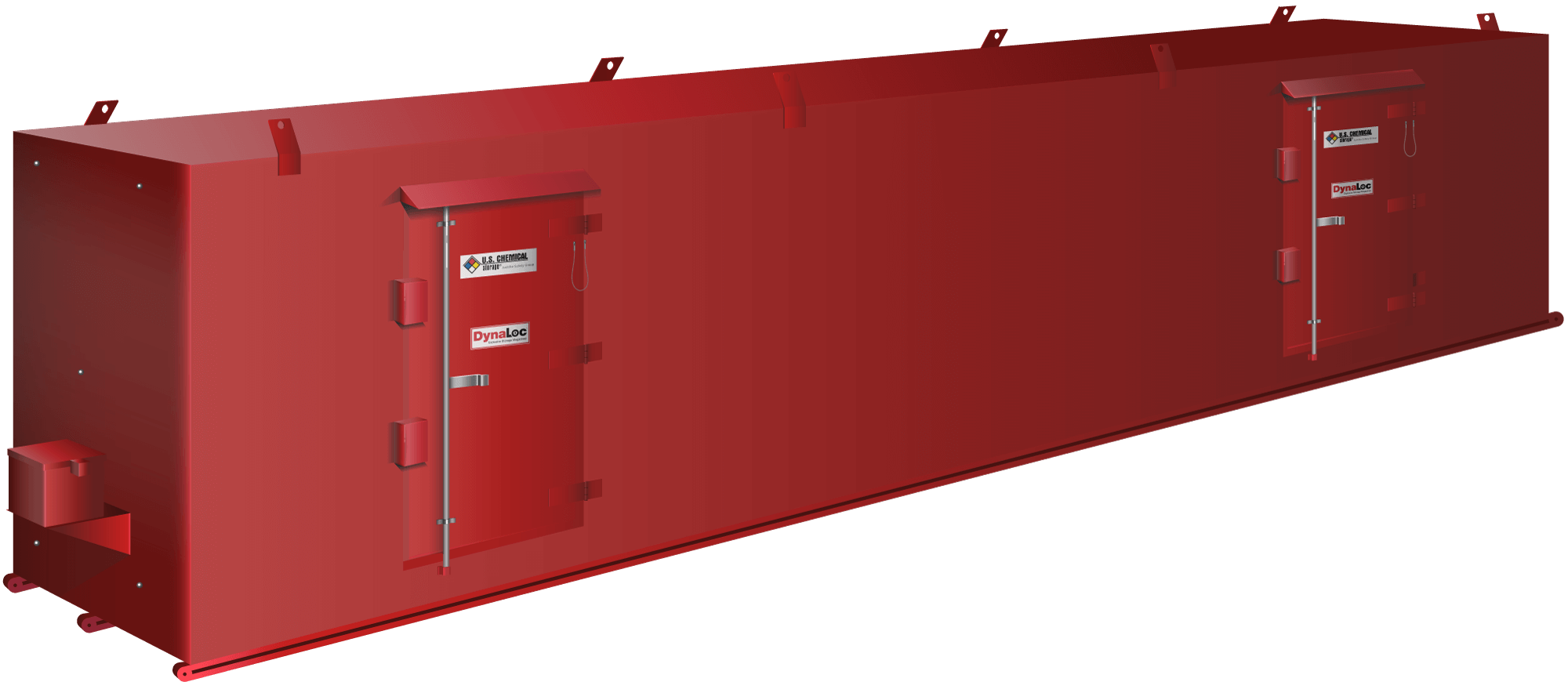

Type 4 Magazine

Dimensions Exterior: 384 x 96 x 96 in (LxWxH)
Dimensions Interior: 375 x 87 x 91.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 432 x 96 x 96 in (LxWxH)
Dimensions Interior: 423 x 87 x 91.8 in
Optional detonator box

Type 4 Magazine

Dimensions Exterior: 480 x 96 x 96 in (LxWxH)
Dimensions Interior: 471 x 87 x 91.8 in
Optional detonator box
