DynaLoc™ Type 3 Daybox for Explosives

Call for Price

U.S. Chemical Storage manufactures a durable Type 3 explosive magazine, also known as a “day-box,” for temporary, supervised storage. Our day box for explosives help your team safely transport small amounts of explosives from your overnight storage area for use on your worksite. Lightweight and portable, each Type 3 day box is constructed of 12-gauge steel lined with ¾ inch of hardwood and available in five standard models. Custom sizes are also available. Use our Type 3 IME/DOT day box for explosives to meet regulations when transporting explosives on public highways. It features 12-gauge steel construction with a laminate interior that meets IME SLP 22 requirements. Four standard sizes are available, including a two-part compartment design that allows storage of transport of detonators and explosives in the same vehicle.

Description

Manufacturer: U.S Chemical Storage

Type 3 Explosive Storage Magazine

U.S. Chemical Storage manufactures a durable Type 3 explosive magazine, also known as a “day-box,” for temporary, supervised storage. Our day box for explosives help your team safely transport small amounts of explosives from your overnight storage area for use on your worksite. Lightweight and portable, each Type 3 day box is constructed of 12-gauge steel lined with ¾ inch of hardwood and available in five standard models. Custom sizes are also available. Use our Type 3 IME/DOT day box for explosives to meet regulations when transporting explosives on public highways. It features 12-gauge steel construction with a laminate interior that meets IME SLP 22 requirements. Four standard sizes are available, including a two-part compartment design that allows storage of transport of detonators and explosives in the same vehicle.

Secure Storage for COVID-19 Testing Kits and Medical Supplies

In the wake of the global pandemic, reducing and limiting the spread is still as important as ever. As more and more testing sites are opened outside of traditional healthcare settings, safe, secure storage and transportation of testing kits and medical supplies is vital. Dynaloc day boxes are versatile enough to be used to secure a variety of items. From testing kits, medical devices and essential personnel PPE, to ammunition for security personnel, our Dynaloc day boxes provide a secure, portable solution.

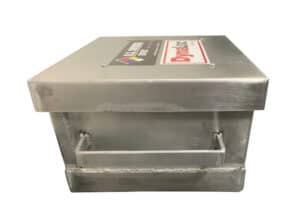

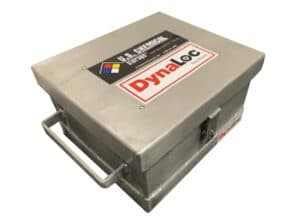

Need a lighter weight option? Aluminum day boxes also available.

Type 3 Day Box and IME/DOT Day Box Features & Benefits

    • Fire-resistant
    • Weather resistant
  • Theft-resistant
  • Top-opening doors overlap sides by one inch
  • Single lock door system features hinges and hasps welded to door – cannot be removed when the door is closed and locked

Explosive Storage Magazine Compliance

All magazines meet and exceed:

  • ATF 27 CFR, Part 555.208
  • DoD 5100

Common Applications

  • Military/law enforcement explosive and ammunition storage
  • Municipal explosive and ammunition storage
  • Contractor explosive and ammunition storage

Exterior Dimensions: L x W x H

Type 3 Day Box Magazine Sizes

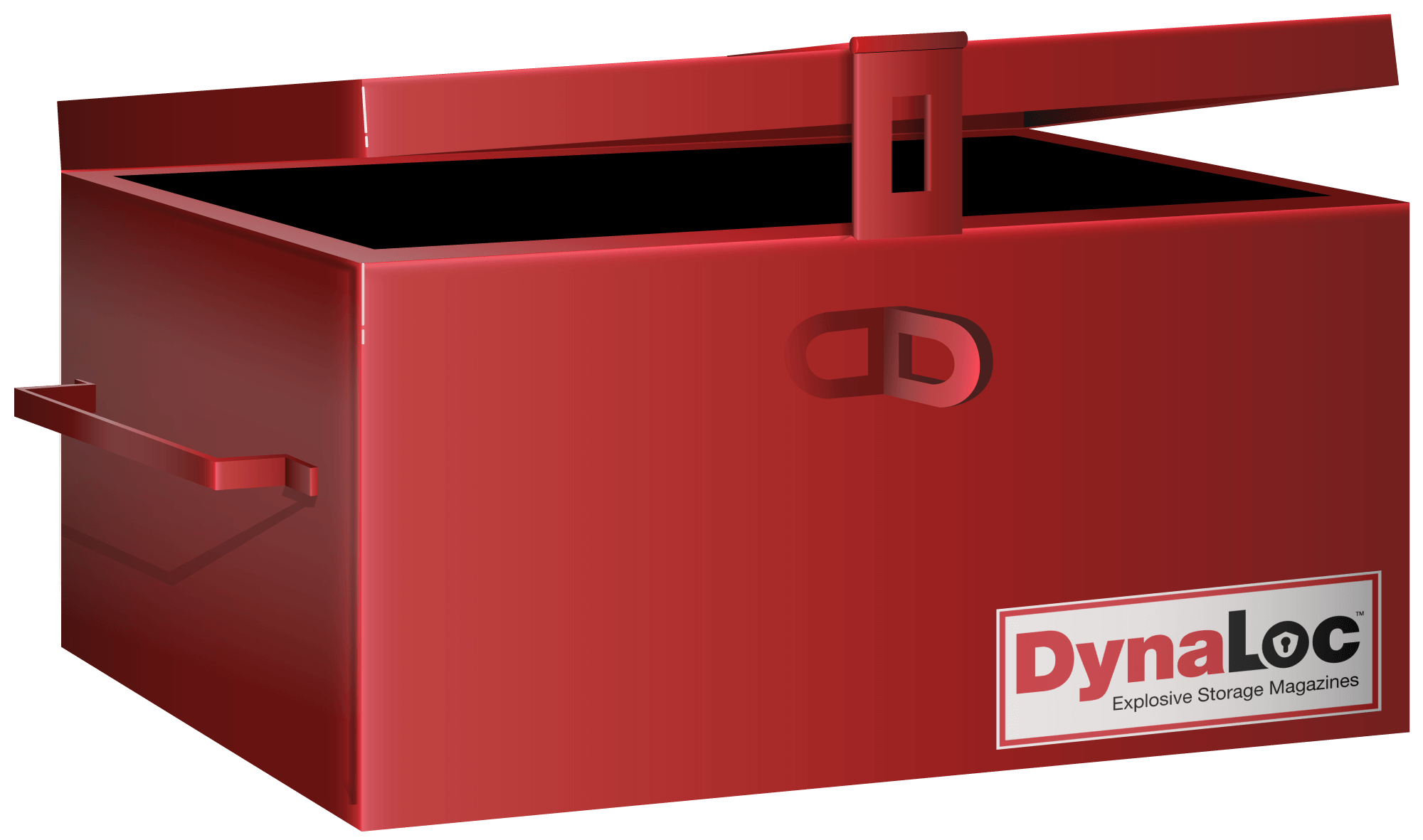

Type 3 Day Box Storage

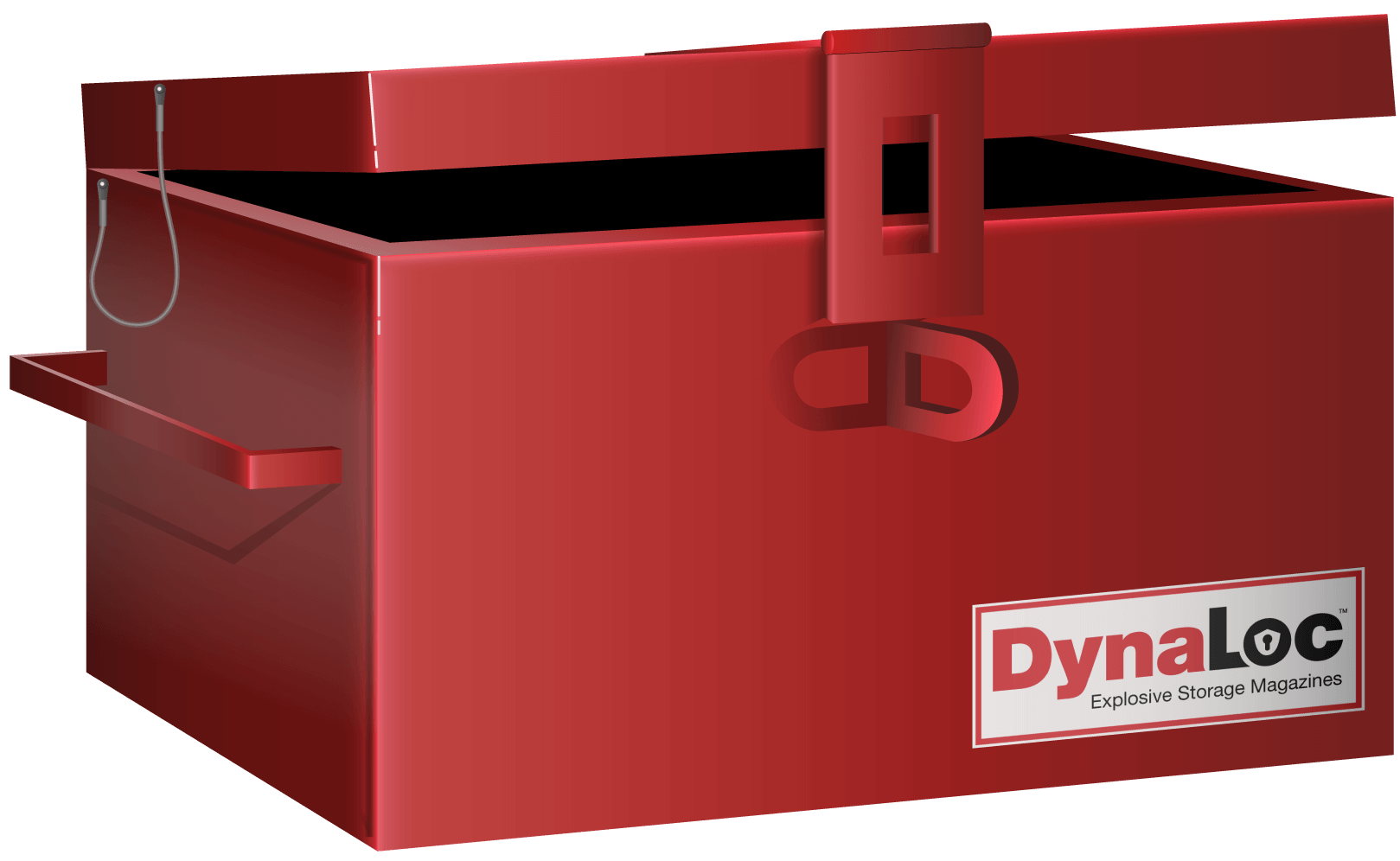

Dimensions Exterior: 14 x 12 x 8 in (LxWxH)
Dimensions Interior: 12.8 x 10.8 x 6.75 in
Approximate Weight: 34 lbs.

Type 3 Day Box Storage

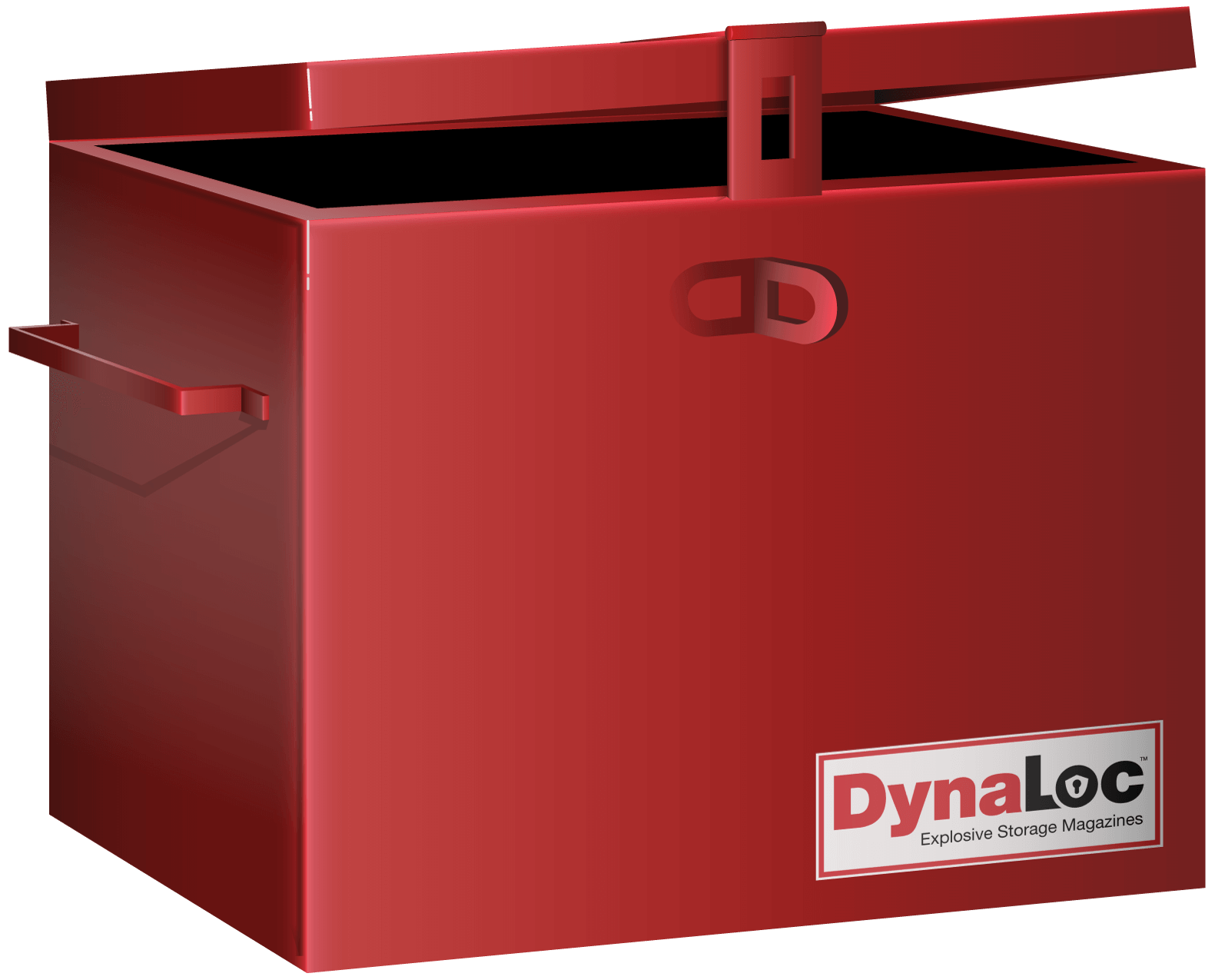

Dimensions Exterior: 24 x 18 x 12 in (LxWxH)
Dimensions Interior: 22.8 x 16.8 x 10.8 in
Approximate Weight: 84.19 lbs.

Type 3 Day Box Storage

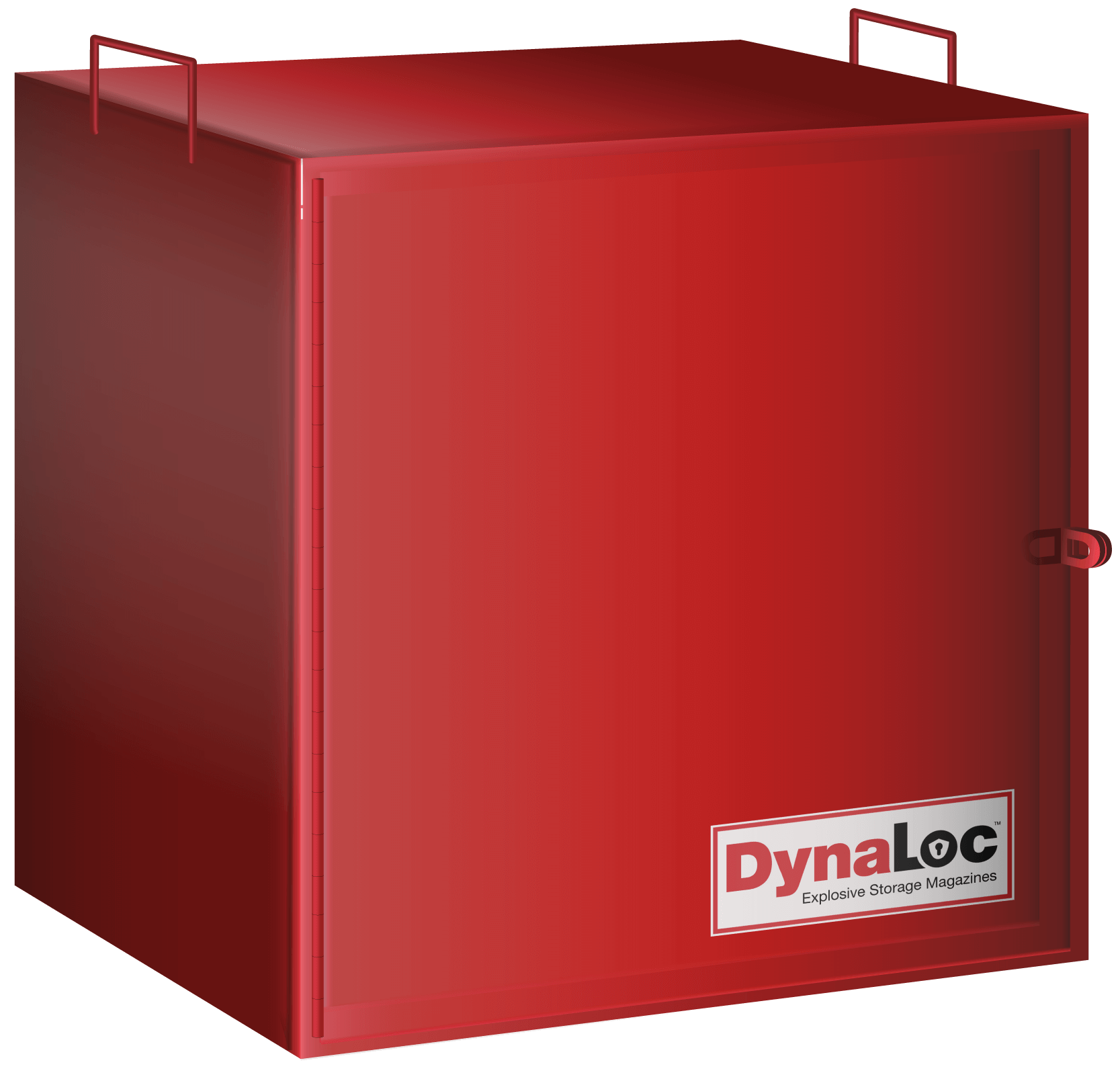

Dimensions Exterior: 24 x 18 x 18 in (LxWxH)
Dimensions Interior: 22.8 x 16.8 x 16.8 in
Approximate Weight: 107 lbs.

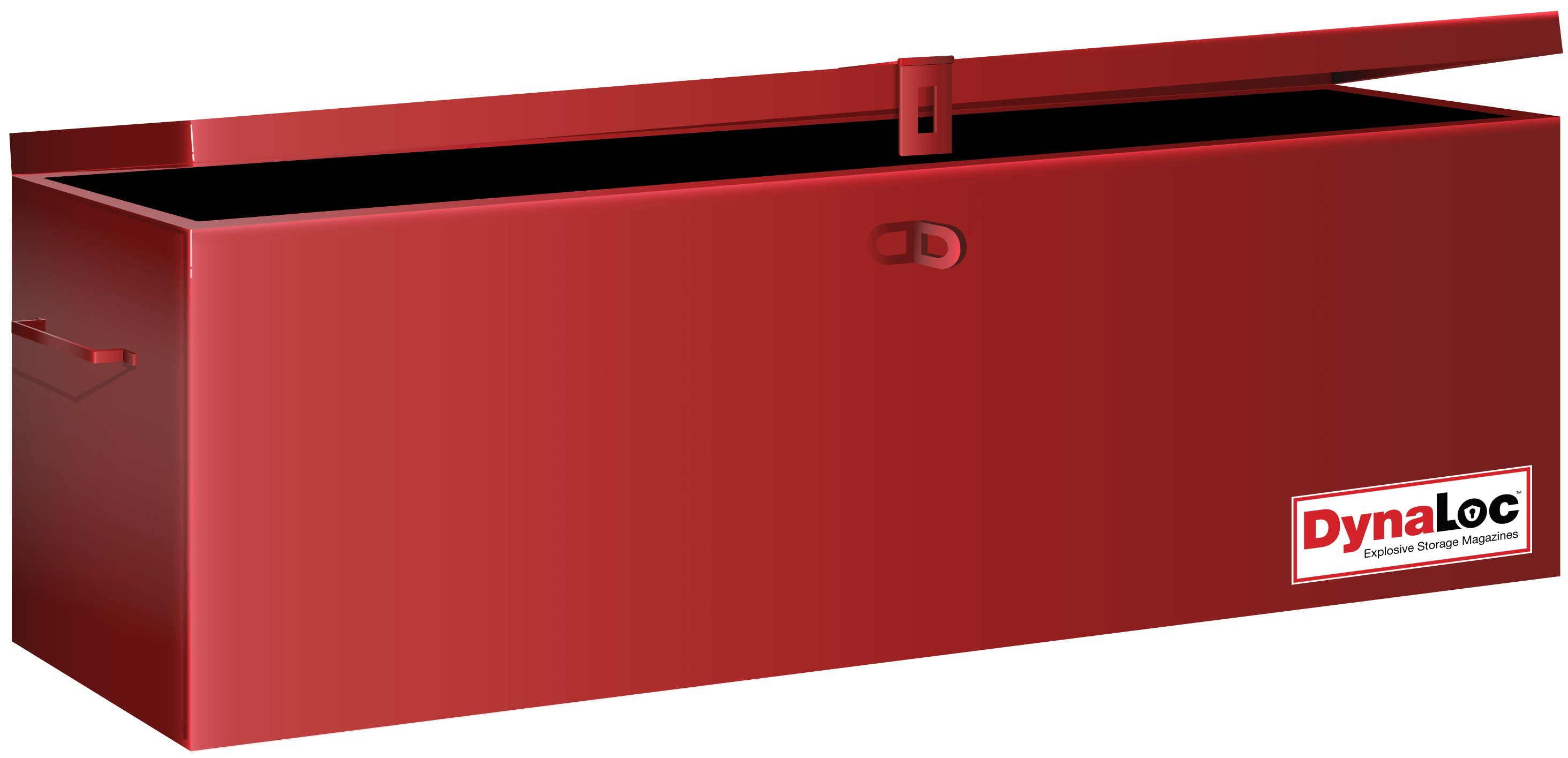

Type 3 Day Box Storage

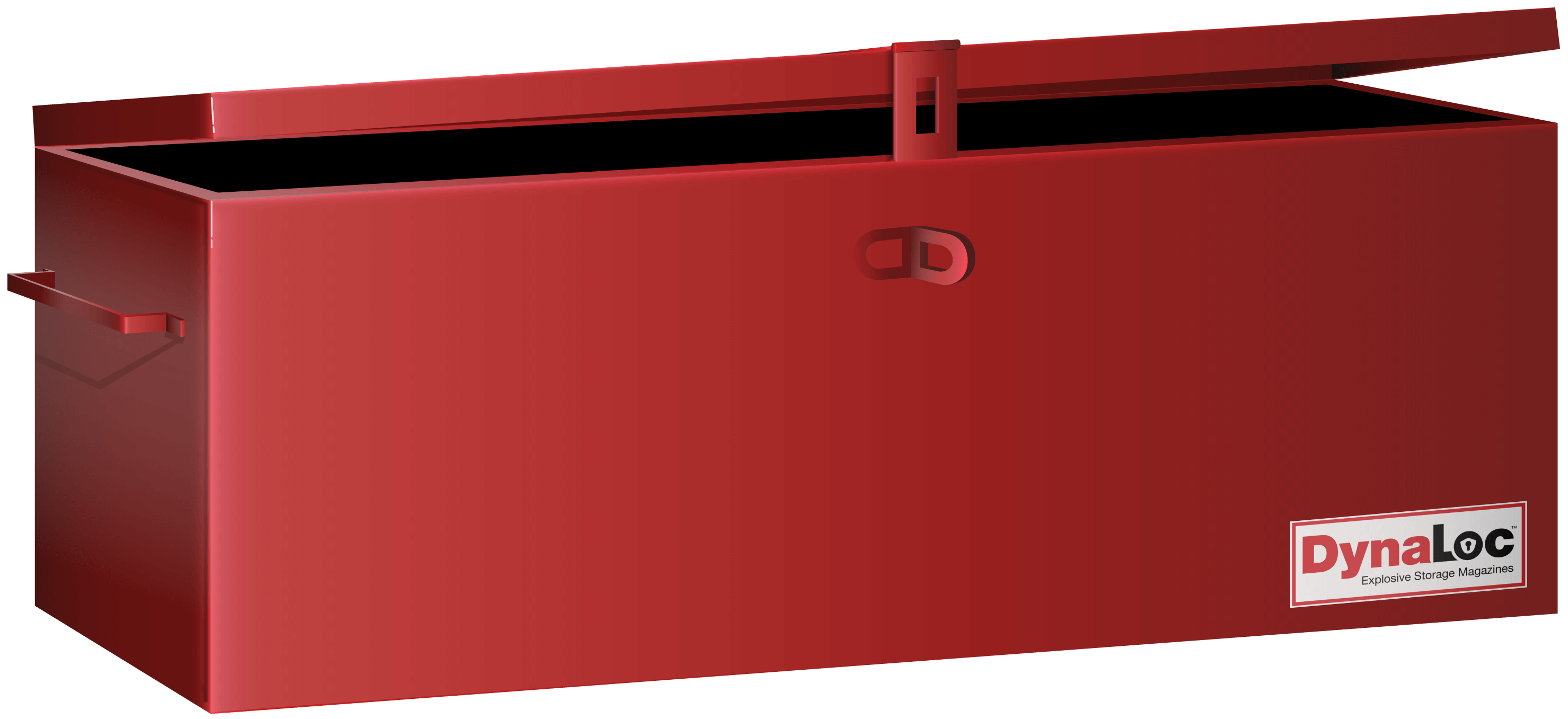

Dimensions Exterior: 48 x 18 x 18 in (LxWxH)
Dimensions Interior: 46.8 x 16.8 x 16.8 in
Approximate Weight: 183 lbs.

Type 3 Day Box Storage

Dimensions Exterior: 60 x 24 x 24 in (LxWxH)
Dimensions Interior: 58.8 x 22.8 x 22.8 in
Approximate Weight: 308 lbs.

Type 3 IME/DOT Day Box Magazine Sizes

Type 3 IME/DOT Day Box

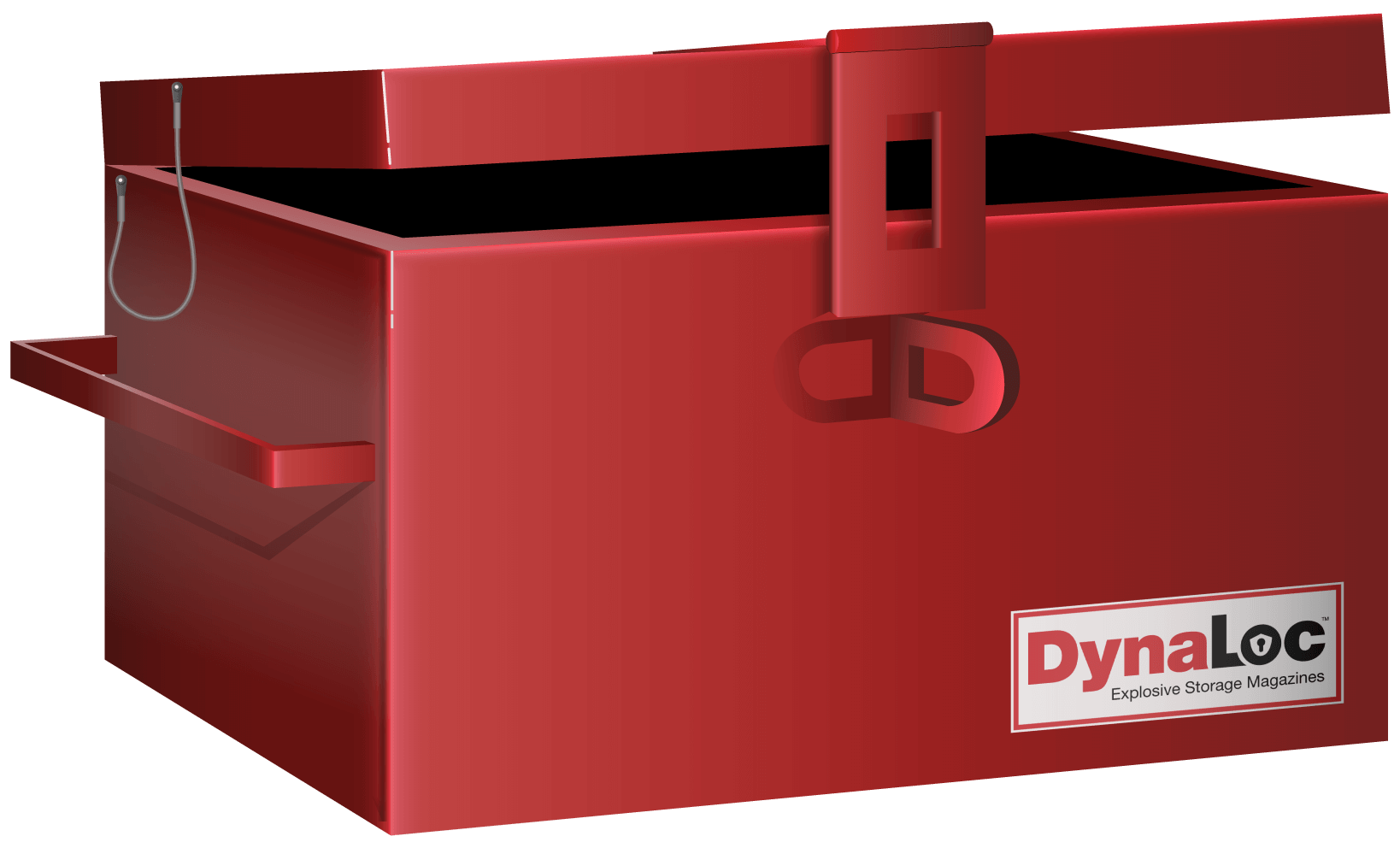

Dimensions Exterior: 14 x 12 x 8 in (LxWxH)
Dimensions Interior: 11 x 9 x 5 in
Approximate Weight: 58 lbs.

Type 3 IME/DOT Day Box

Dimensions Exterior: 17 x 24 x 18 in (LxWxH)
Dimensions Interior: 14 x 21 x 15 in
Approximate Weight: 175 lbs.

Type 3 IME/DOT Day Box

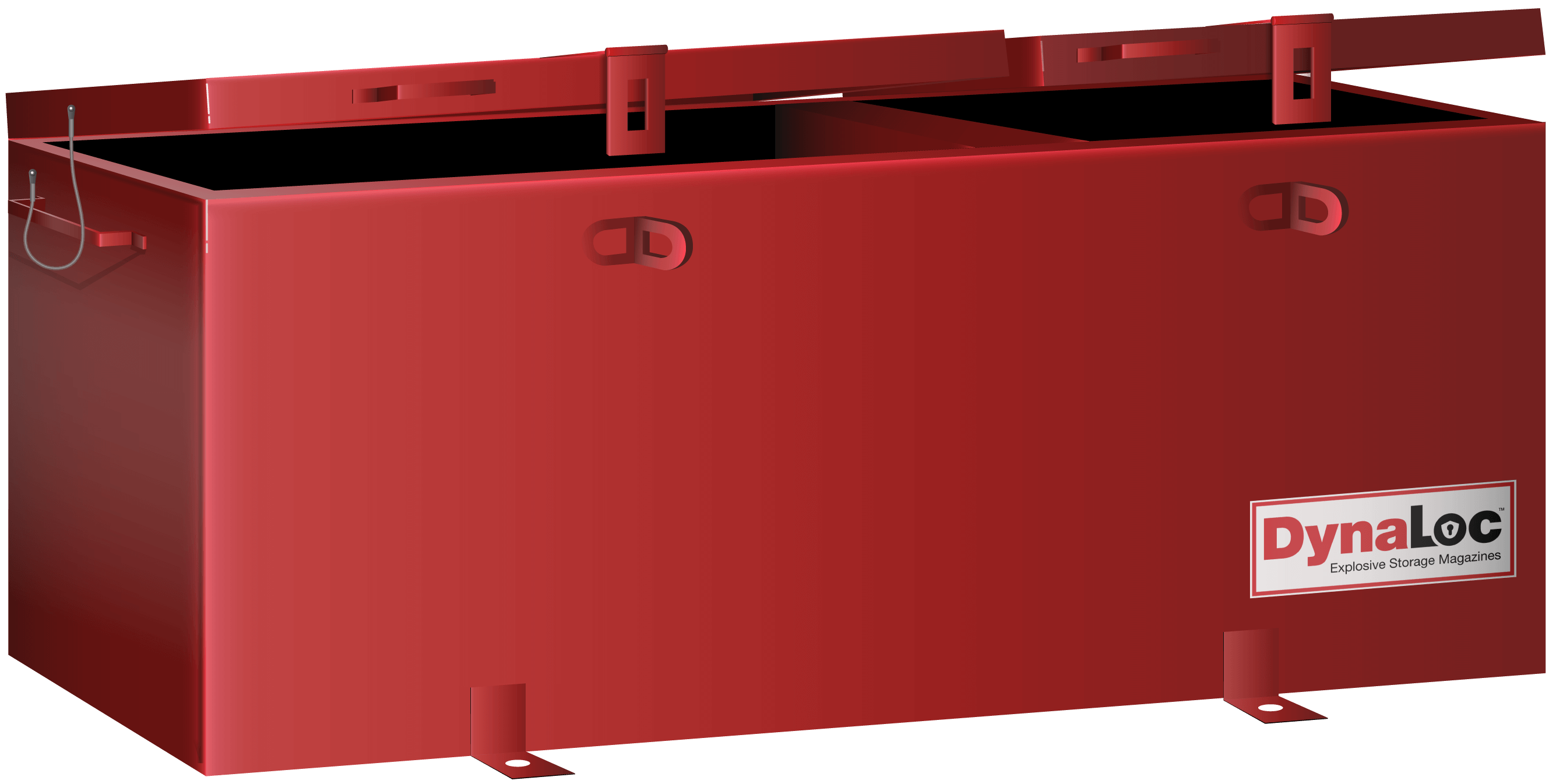

Dimensions Exterior: 42 x 24 x 24 (LxWxH)
Approximate Weight 507 lbs.

Type 3 IME/DOT Day Box

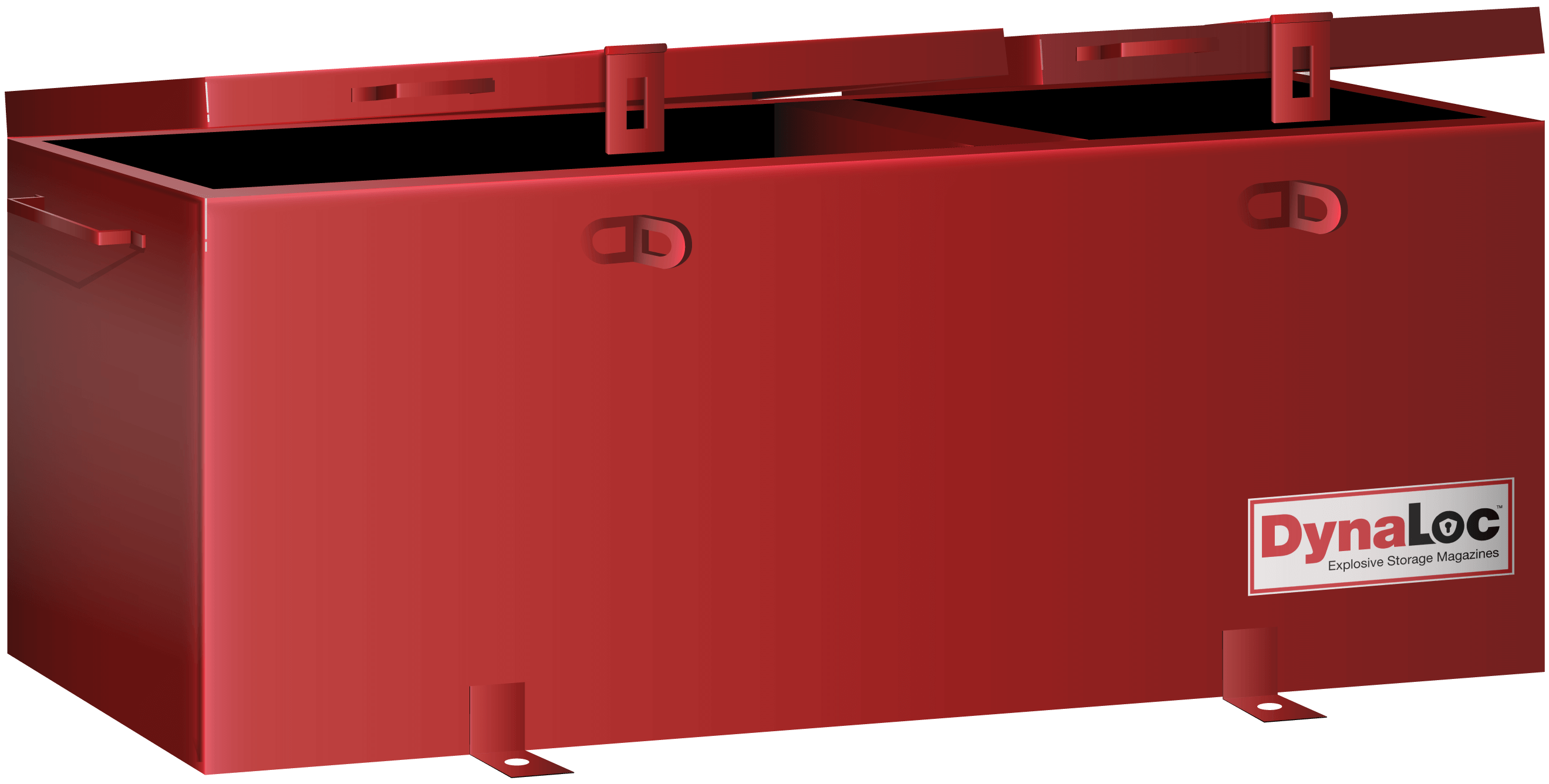

Dimensions Exterior: 60 x 24 x 24 (LxWxH)
Approximate Weight 680 lbs.
